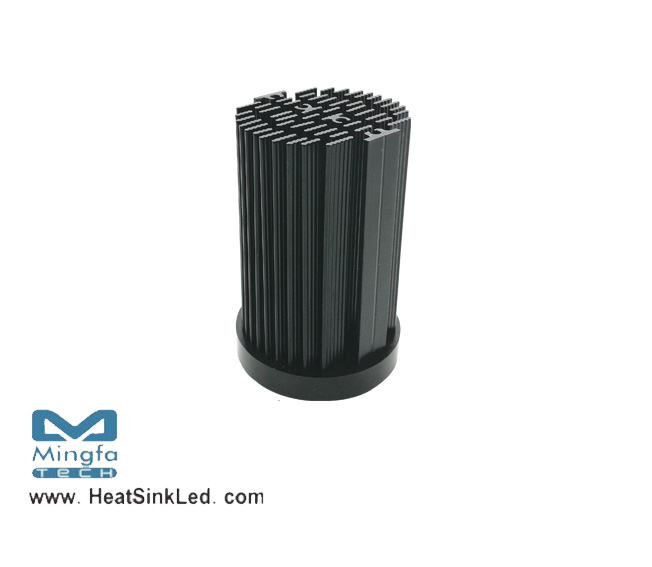

xLED-PHI-4568 Pin Fin Heat Sink Φ45mm for Philips

Quantity:

xLED-PHI-4568 Pin Fin Heat Sink Φ45mm for Philips


* The xLED-PHI-4568 Philips Pin Fin LED Heat Sinks are specifically designed for luminaires using the Philips LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 300 to 1,400 lumen.

* Thermal resistance range Rth 4.76°C/W.

* Modular design with mounting holes foreseen for direct mounting of Philips LED engines.

* Diameter 45.0mm - standard height 68.0mm, Other heights on request.

* Forged from highly conductive aluminum.


Download PDF

xLED-PHI-4568 Pin Fin Heat Sink Φ45mm for Philips.pdf
