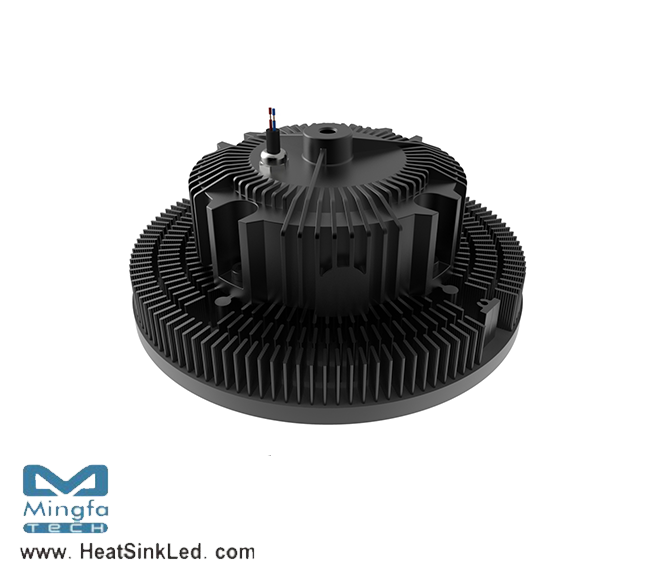

xLED-22530 Passive Pin Fin Heatsink Φ225mm
* Mechanical compatibility with direct mounting of the SMD products to the LED cooler and thermal performance matching the lumen packages.
* For flood light,street light and high bay designs from 5,000 to 12,000 lumen.
* Thermal resistance range Rth 0.63°C/W.
* Product size: Diameter 225mm - Standard height 30mm , Other widths on request.
* Forged from highly conductive aluminium for optimal thermal performance (AL1070), aluminium 1070 thermal conductivity is 2.0 times higher than ADC12.
* 2 standard colors - clear anodised - black anodised
* Waterproof level designs from IP65 to IP67.
* With the SMD products (3030 , 2835 , 5050……): Bridgelux , Cree , Edison , Citizen , LG Innotek Lumileds , Luminus, Lumens , Nichia , Osram , Prolight Opto , Seoul , Samsung , Sharp.
Download PDF
