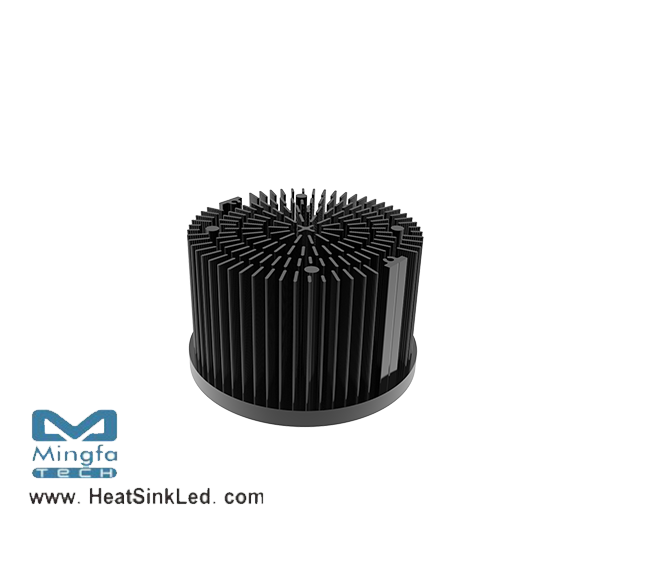

xLED-13080 Pin Fin LED Heat Sink Φ130mm


xLED-13080 Pin Fin LED Heat Sink Φ130mm

* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 3,500 to 9,200 lumen.
* Thermal resistance range Rth 0.83°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COBs.
* Diameter 130.0mm - Standard height 80.0mm , Other heights on request.
* Forged from highly conductive aluminum.
2 standard colors - clear anodized - black anodized.
Zhaga Book 3 Spot Light Modules: Bridgelux ,Cree ,Citizen ,Edison ,GE lighting, LG Innotek ,Lumileds ,Lumens ,Luminus ,Nichia ,Osram ,Philips ,Prolight Opto,Samsung ,Seoul ,Tridonic ,Vossloh-Schwabe ,Xicato.

Download PDF

xLED-13080 Pin Fin Heat Sink Φ130mm.pdf
