tLED-ADU-190x50x72 for Adura Modular Passive LED Cooler

Quantity:

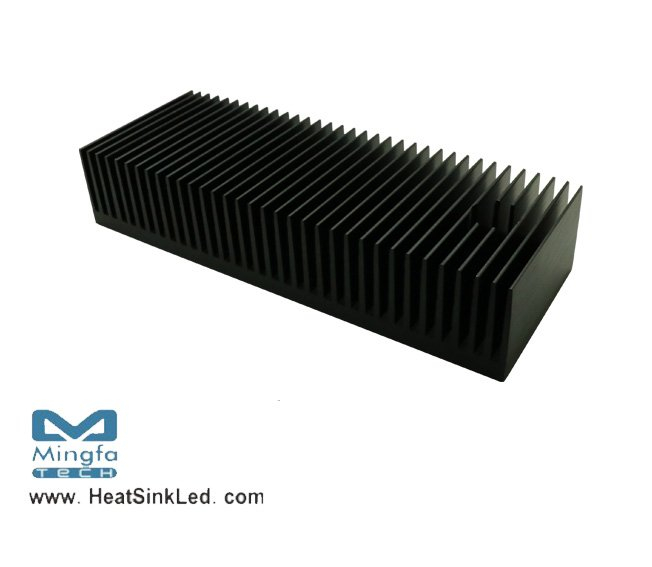

tLED-ADU-190x50x72 for Adura Modular Passive LED Cooler


* The tLED-ADU-190×50×72 Adura Modular Passive LED Coolers are specifically designed for luminaires using the Adura LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 3500 to 8600 lumen.
* Thermal resistance range Rth 0.69°C/W.
* Modular design with mounting holes foreseen for direct mounting of Adura Diamond series

LED engines.
* Size 190×50mm - standard height 72.0mm Other heights on request. * Extruded from highly conductive aluminum.


Download PDF

tLED-ADU-190x50x72 for Adura Modular Passive LED Cooler.pdf
