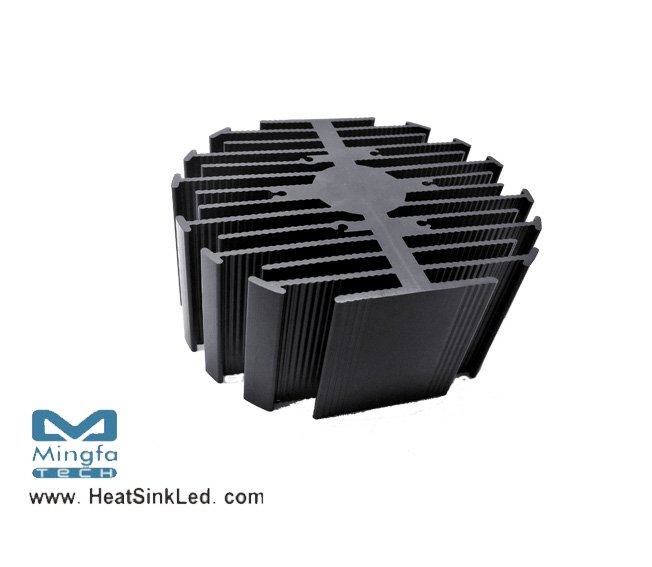

eLED -VOS-9550 Vossloh-Schwabe Modular Passive tar LED Heat Sink Φ95mm * The eLED-VOS-9550 Vossloh-Schwabe Modular Passive LED Coolers are specifically designed for luminaires using the Vossloh-Schwabe LED engines.* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages. | |||||||||||||||||||||||||||||||
* For spotlight and downlight designs from 1800 to 4500 lumen. | |||||||||||||||||||||||||||||||
* Thermal resistance range Rth 1.35°C/W. | |||||||||||||||||||||||||||||||
* Modular design with mounting holes foreseen for direct mounting of Vossloh-Schwabe LUGA Shop LED engines. | |||||||||||||||||||||||||||||||
* Diameter 95mm - standard height 50mm Other heights on request. | |||||||||||||||||||||||||||||||
* Extruded from highly conductive aluminum. |
