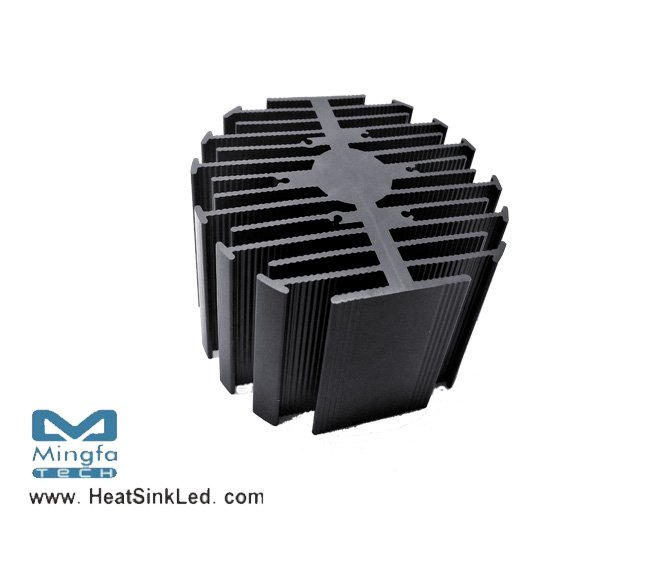

eLED-SHA-7080 Sharp Modular Passive Star LED Heat Sink Φ70mm

Quantity:

eLED-SHA-7080 Sharp Modular Passive Star LED Heat Sink Φ70mm


* The eLED-SHA-7080  SHARP Modular Passive LED Coolers are specifically designed for luminaires using the SHARP LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 1200 to 3000 lumen.

* Thermal resistance range Rth 1.77°C/W.

* Modular design with mounting holes foreseen for direct mounting of SHARP Mini Zenigata,Tiger Zenigataand and Mega Zenigata LED engines.

* Diameter 70mm - standard height 80mm  Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

eLED-SHA-7080 Sharp Modular Passive Star LED Heat Sink Φ70mm.pdf
