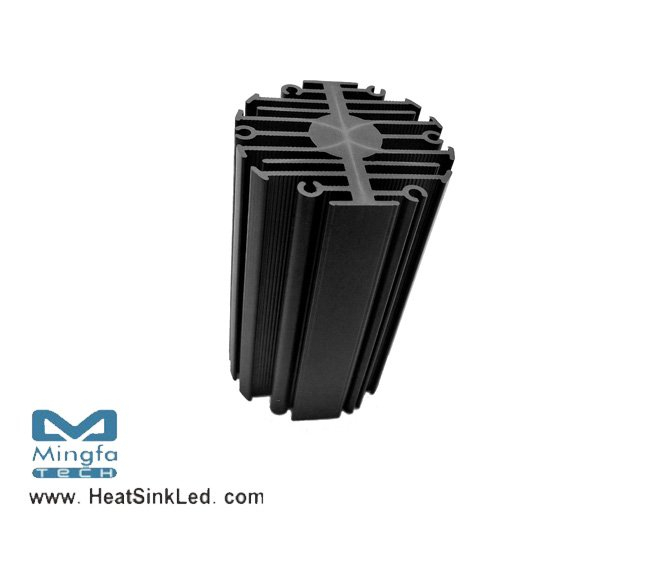

eLED-SEO-4680 Seoul Modular Passive Star LED Heat Sink Φ46mm

Quantity:

eLED-SEO-4680 Seoul Modular Passive Star LED Heat Sink Φ46mm


* The eLED-SEO-4680 Seoul Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Seoul LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 600 to 1600 lumen.
* Thermal resistance range Rth 3.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Seoul ZC LED engines

* Diameter 46.5mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

eLED-SEO-4680 Seoul Modular Passive Star LED Heat Sink Φ46mm.pdf
