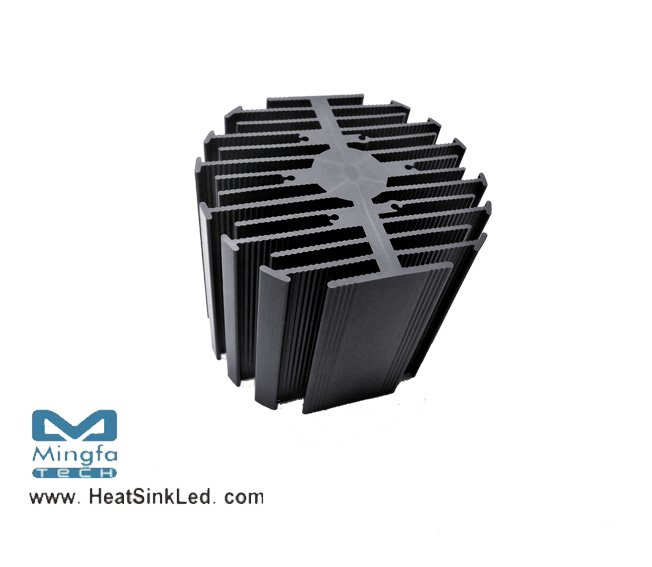

eLED-PHI-9580 for Philips Modular Passive Star LED Heat Sink Φ95mm

Quantity:

eLED-PHI-9580 for Philips Modular Passive Star LED Heat Sink Φ95mm


* The eLED-PHI-9580 Philips Modular Passive LED Coolers are specifically designed for luminaires using the Philips LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 2100 to 5500 lumen.
* Thermal resistance range Rth 1.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM and TDLM engines.

* Diameter 95mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

eLED-PHI-9580 for Philips Modular Passive Star LED Heat Sink Φ95mm.pdf
