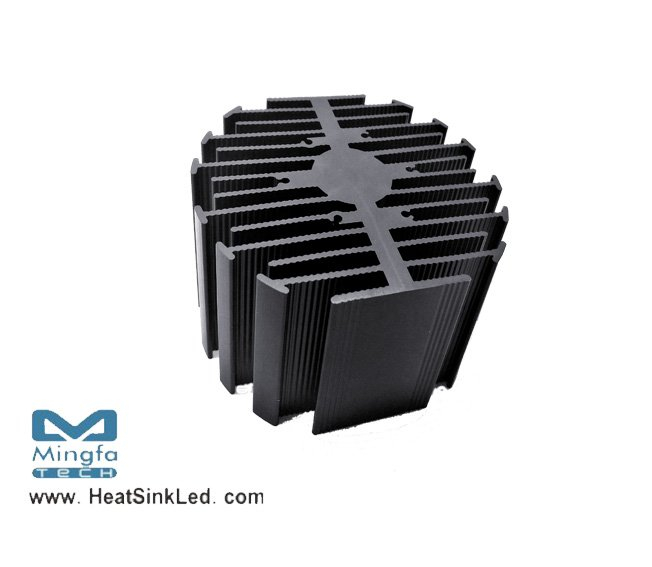

eLED-PHI-7080 for Philips Modular Passive Star LED Heat Sink Φ70mm
* The eLED-PHI-7080 Philips Modular Passive LED Coolers are specifically designed for luminaires using the Philips LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1200 to 3000 lumen.
* Thermal resistance range Rth 1.77°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM engines.
* Diameter 70mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
