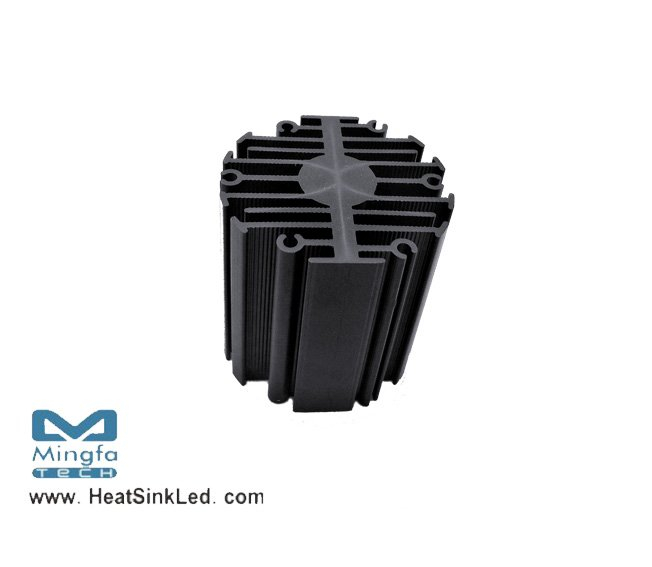

eLED-PHI-7050 for Philips Modular Passive Star LED Heat Sink Φ70mm

Quantity:

eLED-PHI-7050 for Philips Modular Passive Star LED Heat Sink Φ70mm


* The eLED-PHI-7050 Philips Modular Passive LED Coolers are specifically designed for luminaires using the Philips LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 1000 to 2600 lumen.
* Thermal resistance range Rth 2.18°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM engines.

* Diameter 70mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

eLED-PHI-7050 for Philips Modular Passive Star LED Heat Sink Φ70mm.pdf
