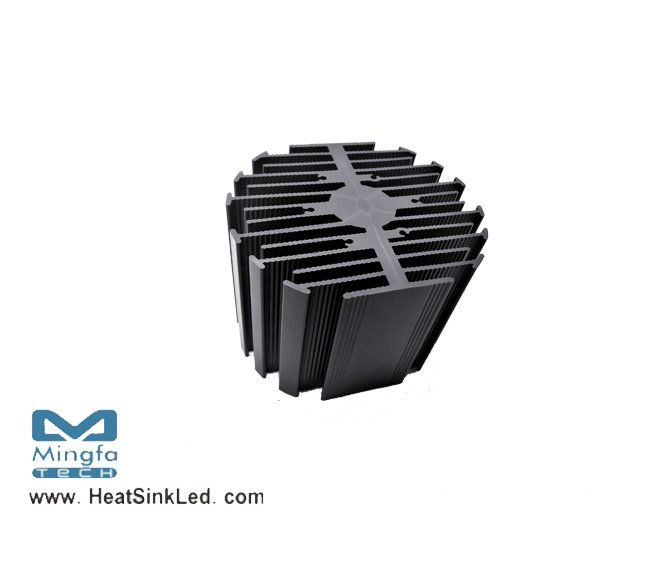

eLED-LG-4650 LG Innotek Modular Passive Star LED Heat Sink Φ46mm
* The eLED-LG-4650 LG Innotek Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the LG Innotek LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 450 to 1200 lumen.
* Thermal resistance range Rth 5.0°C/W.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek COB 10W/13WLED engines.
* Diameter 46mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
Download PDF
eLED-LG-4650 LG Innotek Modular Passive Star LED Heat Sink Φ46mm.pdf
