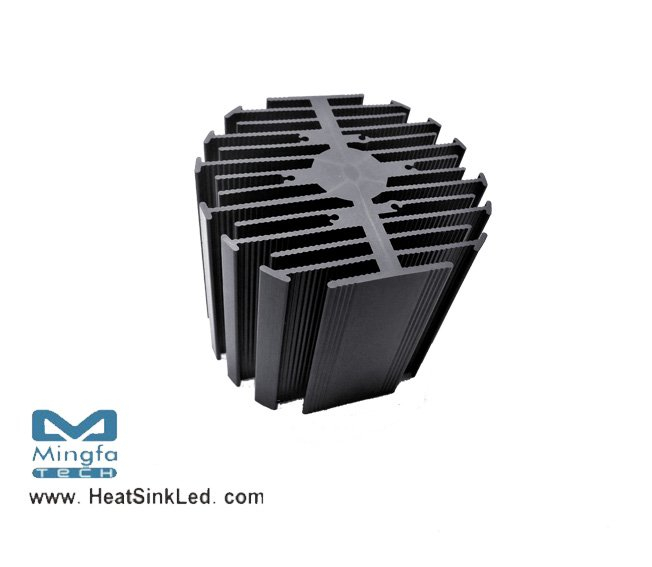

eLED-EDI-9580 Edison Modular Passive Star LED Heat Sink Φ95mm

Quantity:

eLED-EDI-9580 Edison Modular Passive Star LED Heat Sink Φ95mm


* The eLED-EDI-9580 Edison Modular Passive LED Coolers are specifically designed for luminaires using the Edison LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 2100 to 5500 lumen.

* Thermal resistance range Rth 1.1°C/W.

* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex SLM and EdiLex II COB LED engines.

* Diameter 95mm - standard height 80mm Other heights on request. * Extruded from highly conductive aluminum.
