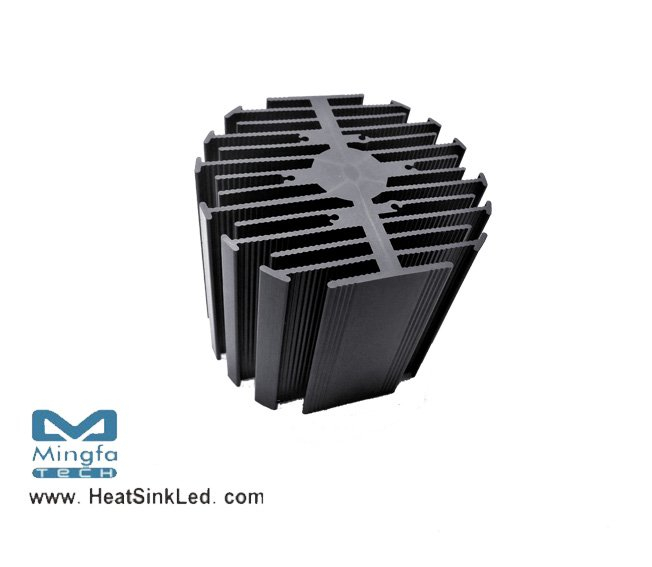

eLED-BRI-9580 Bridgelux Modular Passive Star LED Heat Sink Φ95mm
* The eLED-BRI-9580 Bridgelux Modular Passive LED Coolers are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2100 to 5500 lumen.
* Thermal resistance range Rth 1.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of bridgelux Vero 13,Vero 18,Vero 29 and RS Array Series COB engines.
* Diameter 95mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
Download PDF
eLED-BRI-9580 Bridgelux Modular Passive Star LED Heat Sink Φ95mm.pdf
