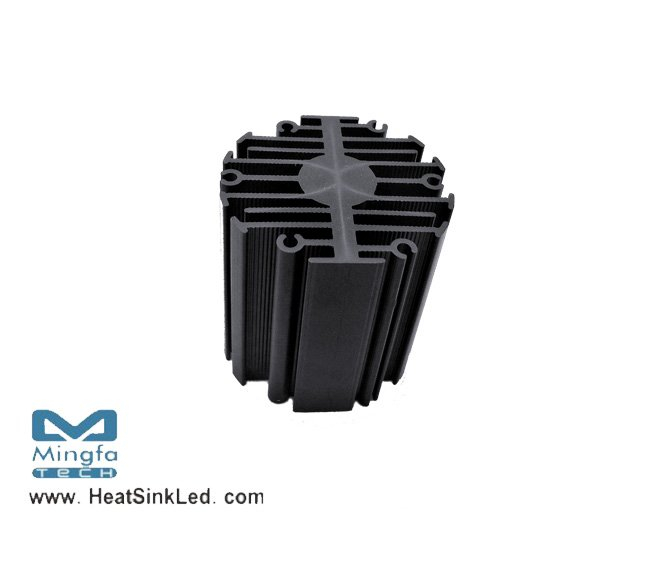

eLED-7050 Modular Passive LED Star Heat Sink Φ70mm
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
*Thermal resistance range Rth 2.18°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:
* Diameter 70mm - Standard height 50mm , Other heights on request.
* Extruded from highly conductive aluminum.
2 standard colors - clear anodised - black anodised
Zhaga Book 3 Spot Light Modules Edison ,Xicato ,Bridgelux , Osram ,Citizen ,Lumileds ,Cree , Tridonic , Vossloh-Schwabe ,Seoul ,LG ,Lustrous ,Prolight ,Samung ,SHARP , Luminus ,Philips .
eLED-7050 Modular Passive LED Star Heat Sink Φ70mm.pdf
