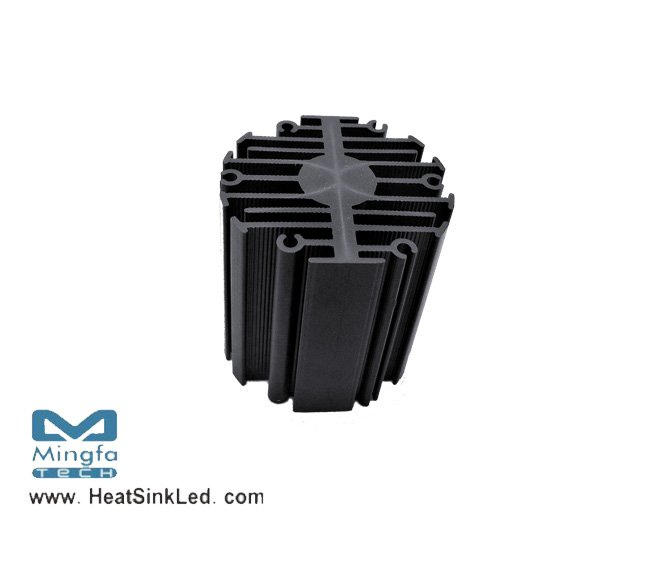

eLED-7020 Modular Passive LED Star Heat Sink Φ70mm

Quantity:

eLED-7020 Modular Passive LED Star Heat Sink Φ70mm


* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.

*Thermal resistance range Rth 3.0°C/W.

* Modular design with mounting holes foreseen for direct  mounting of a wide range of LED modules and COB's:

* Diameter 70mm - Standard height 20mm , Other heights on request.

* Extruded from highly conductive aluminum.

2 standard colors - clear anodised - black anodised.

 Zhaga Book 3 Spot Light Modules Edison ,Xicato ,Bridgelux , Osram ,Citizen ,Lumileds ,Cree ,Tridonic , Vossloh-Schwabe ,Seoul ,LG ,Lustrous ,Prolight ,Samung ,SHARP , Luminus .Philips

Download PDF

eLED-7020 Modular Passive LED Star Heat Sink Φ70mm.pdf
