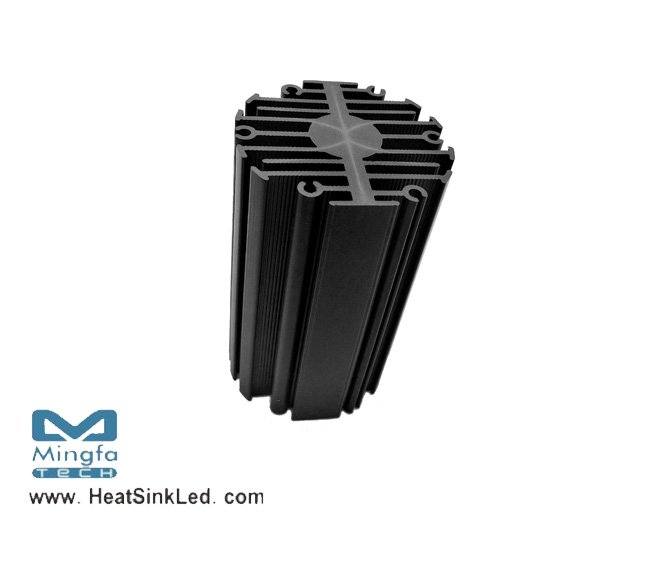

eLED-4680 Modular Passive LED Star Heat Sink Φ46mm

Quantity:

* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* Thermal resistance range Rth 3.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:

* Diameter 46.5mm - Standard height 80mm , Other heights on request. * Extruded from highly conductive aluminum.

Zhaga Book 3 Spot Light Modules Edison , Osram , Xicato ,Bridgelux ,Citizen ,Cree , Lumileds , Tridonic , Vossloh , Seoul ,LG , Lustrous ,Prolight ,Vossloh ,Samung ,Sharp ,Philips


 Download PDF

eLED-4680 Modular Passive LED Star Heat Sink Φ46mm (1).pdf
