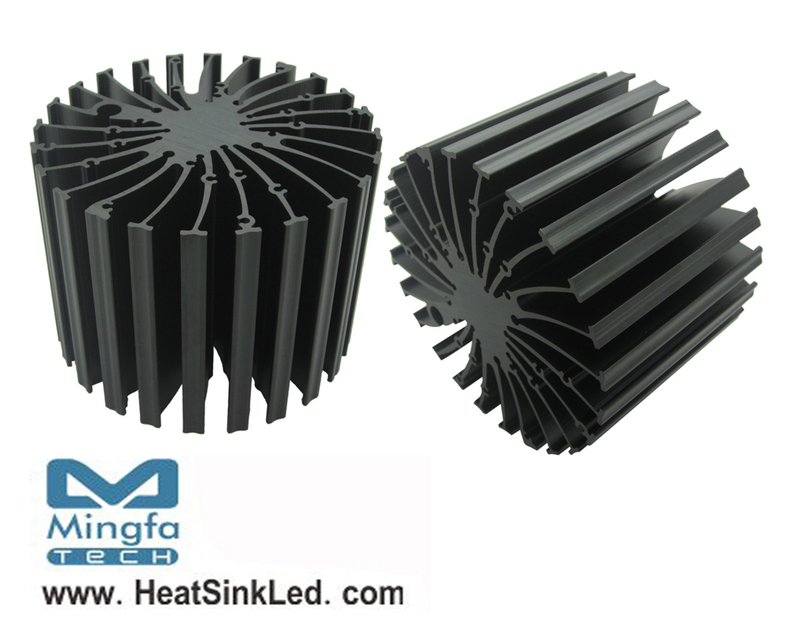

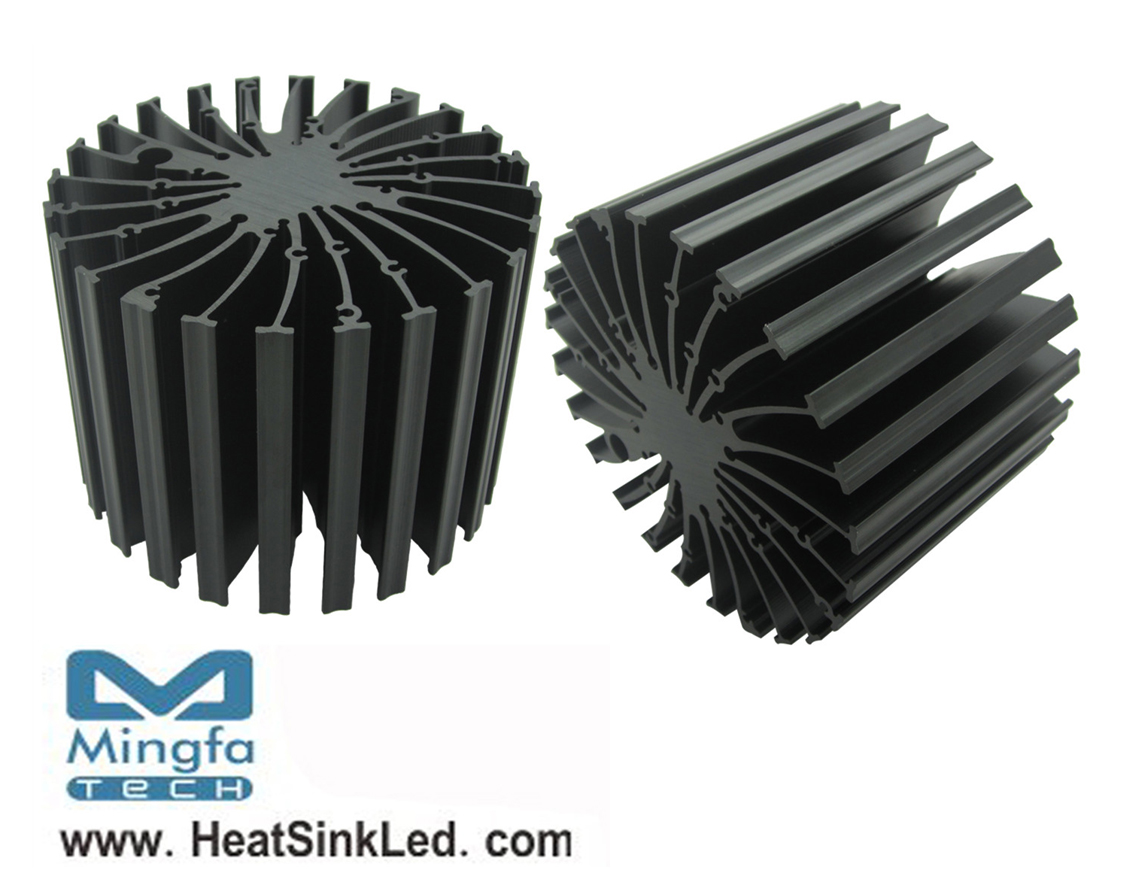

* The XSA-385 Modular Passive LED Star Heat Sinks are specifically designed for
luminaires using the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
thermal performance matching the lumen packages.
* Designs for XSM Module from 2000 to 6400 lumen.
* Thermal resistance range Rth 0.9°C/W. ( Thermal class Q )
* Modular design with mounting holes foreseen for direct mounting of Xicato XSM、XTM and XIM Modules .
* Diameter 110mm - standard height 80mm, Other heights on request.
* Extruded from highly conductive aluminum.
