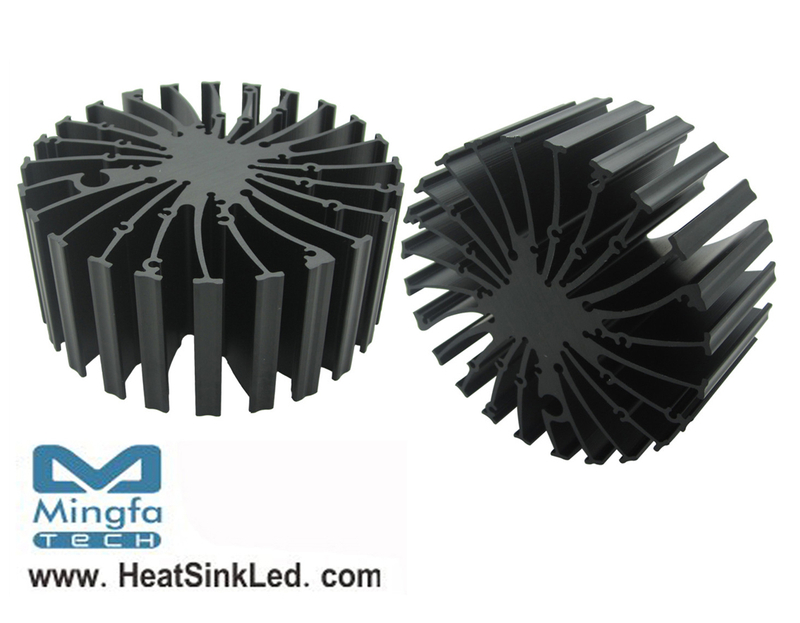

XSA-384 Xicato Star LED cooler Φ110mm


XSA-384 Modular Passive LED Cooler Φ110mm for Xicato

* The XSA-384 Modular Passive LED Star Heat Sinks are specifically designed for
   luminaires using the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
  thermal performance matching the lumen packages.
* Designs for XSM Module from 1600 to 5300 lumen.
* Thermal resistance range Rth 1.1°C/W. ( Thermal class Q )
* Modular design with mounting holes foreseen for direct mounting of Xicato XSM、XTM and XIM Modules .
* Diameter 110mm - standard height 50mm, Other heights on request.
* Extruded from highly conductive aluminum.
