XSA-383 Xicato Star LED cooler Φ85mm

Quantity:

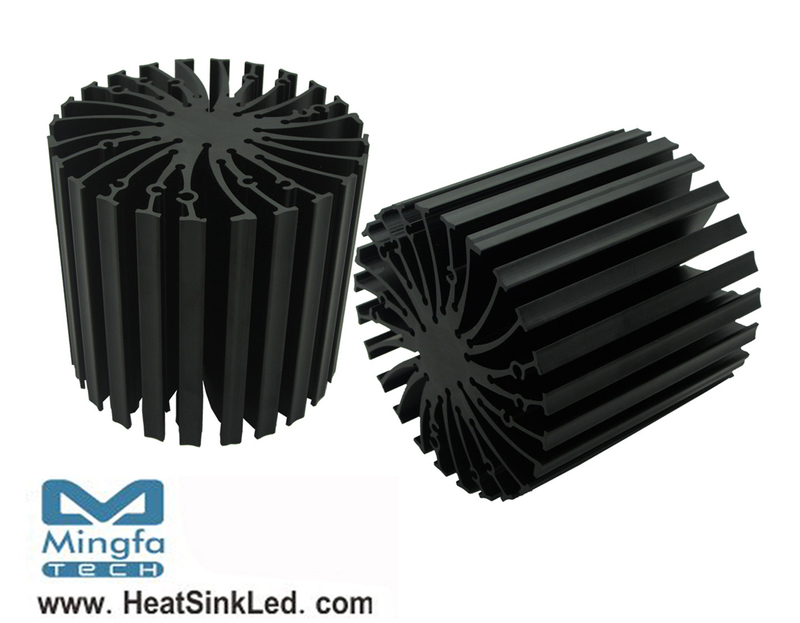

XSA-383 Modular Passive LED Cooler Φ85mm for Xicato


* The XSA-383 Modular Passive LED Star Heat Sinks are specifically designed for luminaires
  using the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
  thermal performance matching the lumen packages.
* Designs for XSM Module from 1300 to 4200 lumen.
* Thermal resistance range Rth 1.3°C/W. ( Thermal class N )
* Modular design with mounting holes foreseen for direct mounting of Xicato XSM、XTM and XIM Modules .
* Diameter 85mm - standard height 80mm, Other heights on request.
* Extruded from highly conductive aluminum.
