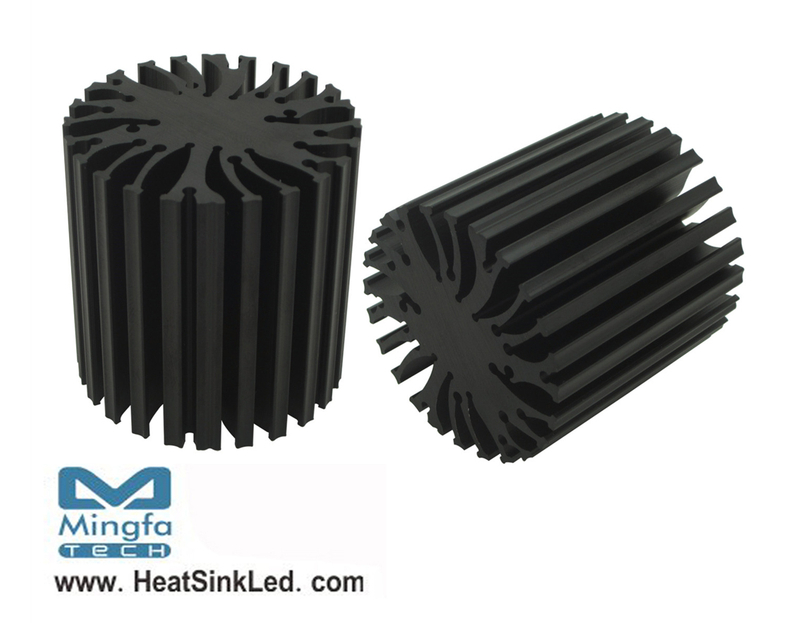

XSA-380 Xicato Star LED cooler Φ48mm

XSA-380 Modular Passive LED Cooler Φ48mm for Xicato
* The XSA-380 Star Heat Sinks are specifically designed for luminaires using
   the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
   thermal performance matching the lumen packages.
* Thermal resistance range Rth 4.2°C/W.
* Xicato Thermal Class E , ( 60° tilt angle, 40°C ambient ) .
* The cooler design with mounting holes foreseen for direct mounting of Xicato XSM、XIM and XTM  Modules .
* Diameter 48mm - Standard height 50mm , Other heights on request.
* Extruded from highly conductive aluminum.
