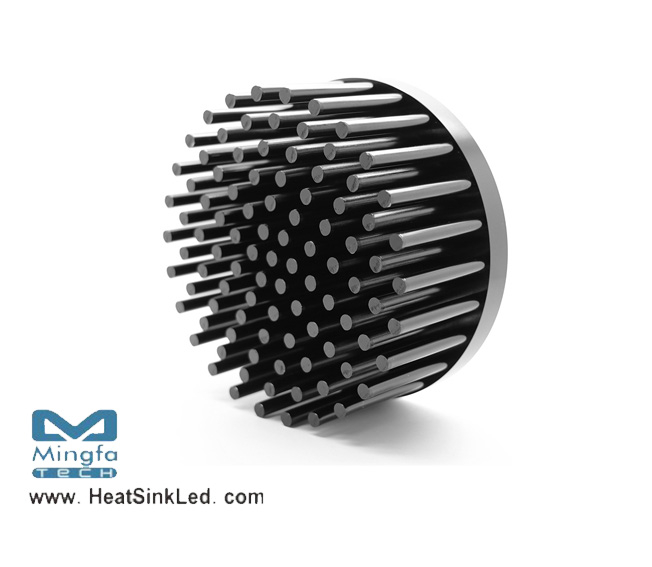

XSA-327 Pin Fin LED Heat Sink Φ110mm for Xicato
The XSA-327 Xicato Pin Fin LED Heat Sinks are specifically designed for luminaires using the Xicato LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2,000 to 5,500 lumen.
* Thermal resistance range Rth 1.47°C/W.
* Xicato Thermal Class N , ( 60° tilt angle, 40°C ambient ) .
* Modular design with mounting holes foreseen for direct mounting of Xicato XSA/ XIM/ XTM modules.
* Diameter 110.0mm - standard height 50.0mm,Other heights on request.
* Forged from highly conductive aluminum.
