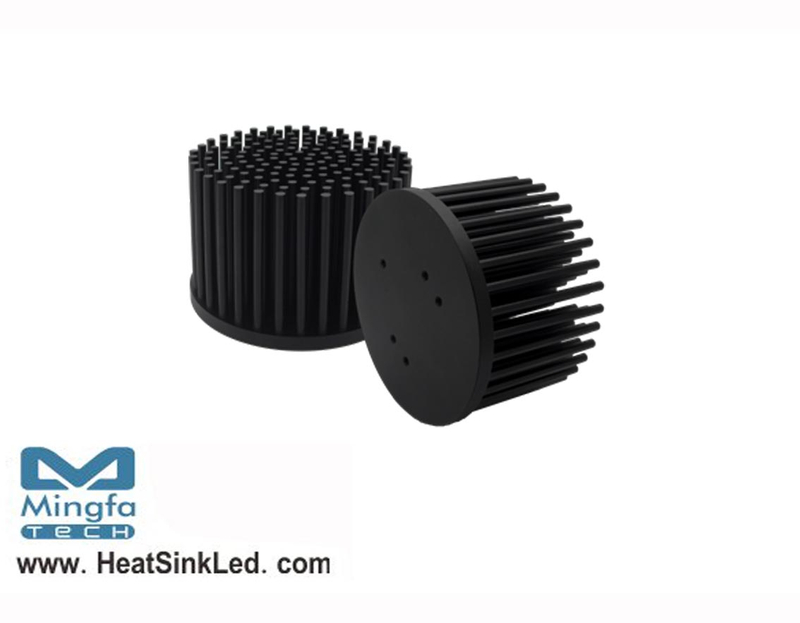

XSA-326 Pin Fin LED Heat Sink Φ78mm for Xicato

Quantity:

XSA-326 Pin Fin LED Heat Sink Φ78mm for Xicato

* The XSA-326 Modular Passive LED Heat Sink  are specifically designed for
   luminaires using the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
   thermal performance matching the lumen packages.
* Thermal resistance range Rth 2.1°C/W.
* Xicato Thermal Class J , ( 60° tilt angle, 40°C ambient ) .
* The cooler design with mounting holes foreseen for direct mounting of Xicato XSM、XIM and XTM  Modules .
* Diameter 78mm - Standard height 50mm , Other heights on request.

* Forged from highly conductive aluminum.


Download

XSA-326 Pin Fin LED Heat Sink Φ78mm for Xicato Rev.2.0.pdf
