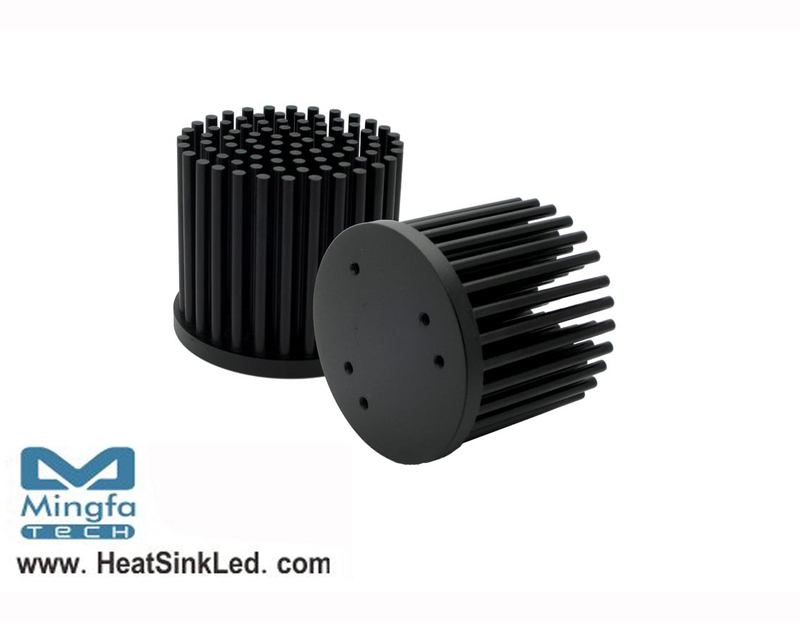

XSA-320 Pin Fin LED Heat Sink Φ58mm for Xicato

Quantity:

XSA-320 Pin Fin LED Heat Sink Φ58mm for Xicato

* The XSA-320 Pin Fin LED Heat Sink are specifically designed for luminaires using
   the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
   thermal performance matching the lumen packages.
* Thermal resistance range Rth 3.3°C/W.
* Xicato Thermal Class F , ( 60° tilt angle, 40°C ambient ) .
* The cooler design with mounting holes foreseen for direct mounting of Xicato XSM、XIM and XTM  Modules .
* Diameter 58mm - Standard height 50mm , Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

XSA-320 Pin Fin LED Heat Sink Φ58mm for Xicato Rev.2.0.pdf
