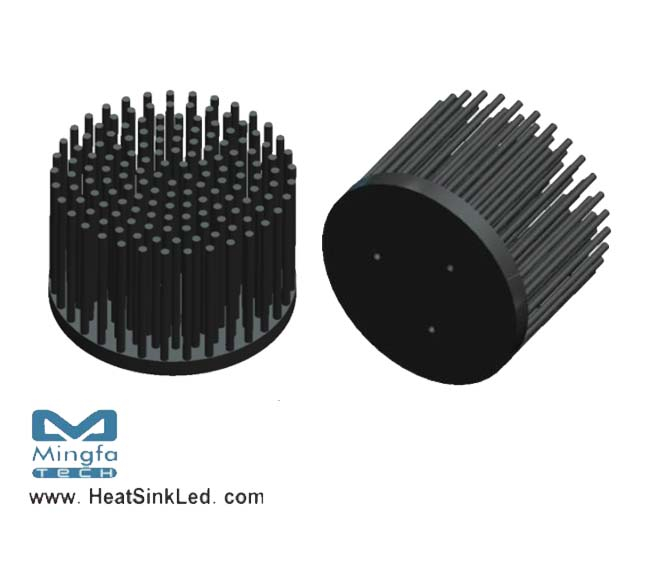

XSA-318 Pin Fin LED Heat Sink Φ48mm for Xicato Rev.2.0


* The XSA-318 Xicato Pin Fin LED Heat Sinks are specifically designed for luminaires using the Xicato LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 600 to 1,800 lumen.

* Thermal resistance range Rth 4.35°C/W.

* Xicato Thermal Class E , ( 60° tilt angle, 40°C ambient ) .

* Modular design with mounting holes foreseen for direct mounting of Xicato XSA/ XIM/ XTM modules.

* Diameter 48.0mm - standard height 68.0mm,Other heights on request.

* Forged from highly conductive aluminum.


Download PDF

XSA-318 Pin Fin LED Heat Sink Φ48mm for Xicato Rev.2.0.pdf
