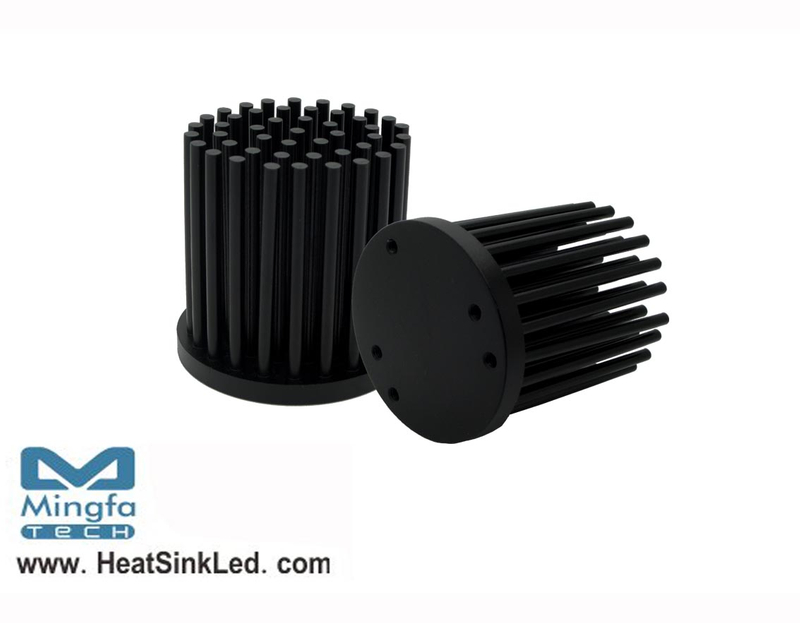

* The XSA-317 Pin Fin LED Heat Sink are specifically designed for luminaires using
the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
thermal performance matching the lumen packages.
* Thermal resistance range Rth 4.2°C/W.
* Xicato Thermal Class E , ( 60° tilt angle, 40°C ambient ) .
* The cooler design with mounting holes foreseen for direct mounting of Xicato XSM、XIM and XTM Modules .
* Diameter 48mm - Standard height 50mm , Other heights on request.
* Forged from highly conductive aluminum.
Download PDF
XSA-317 Pin Fin LED Heat Sink Φ48mm for Xicato Rev.2.0.pdf
