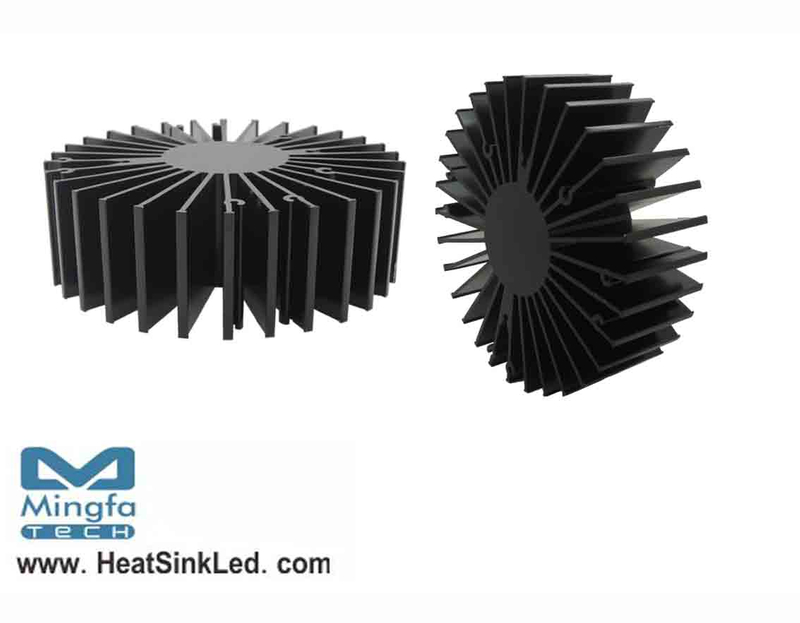

XSA-311 Modular Passive LED Cooler Φ135mm for Xicato


* The XSA-311 Xicato Modular Passive LED Coolers are specifically designed for luminaires using Xicato LED modules.

* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.

* Designs for XSM Module from 2000 to 4500 lumen.

* Thermal resistance range Rth1.1°C/W. ( XSM Thermal class Q)

* The cooler design with mounting holes foreseen for direct mounting of Xicato XSM、XTM and XIM Modules.

* Diameter 135mm - standard height 40mm Other heights on request.

* Center hole for cable guidance.

* Extruded from highly conductive aluminum.
