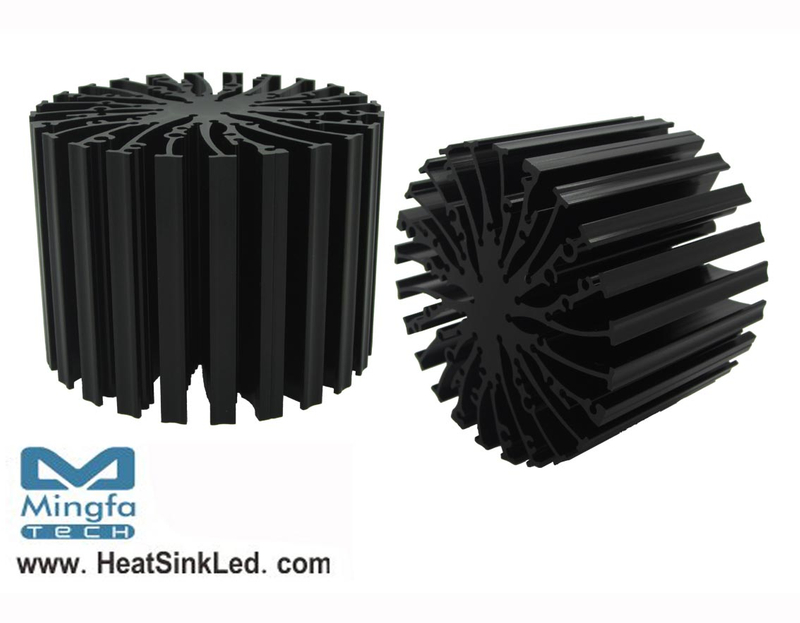

* The XSA-310 Modular Passive LED Coolers are specifically designed for luminaires using
the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
thermal performance matching the lumen packages.
* Designs for XSM Module from 2200 to 4300 lumen.
* Thermal resistance range Rth 0.92°C/W. ( XSM Thermal class Q)
* Modular design with mounting holes foreseen for direct mounting of Xicato XSM、XTM and XIM Modules .
* Diameter 96mm - standard height 80mm, Other heights on request.
* Extruded from highly conductive aluminum.
