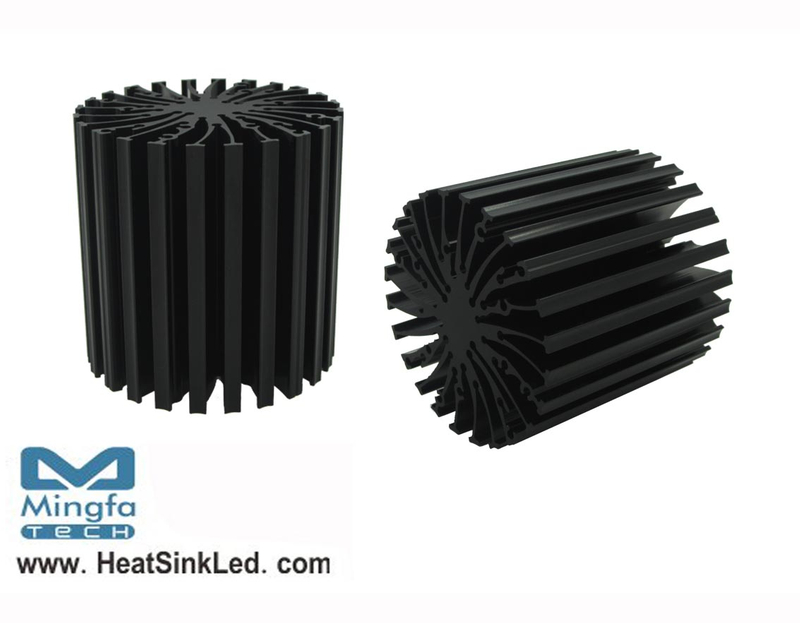

XSA-308 Xicato LED Star Heat Sink Φ70mm


XSA-308 Xicato LED Star Heat Sink Φ70mm

* The XSA-308 Modular Passive LED Coolers are specifically designed for luminaires using
  the Xicato LED Modules.
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and
  thermal performance matching the lumen packages.
* Designs for XSM Module from 800 to 3000 lumen.
* Thermal resistance range Rth 1.8°C/W.  ( XSM Thermal class H)
* The cooler design with mounting holes foreseen for direct mounting of Xicato、XTM and  XIM Modules .
* Diameter 70mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
