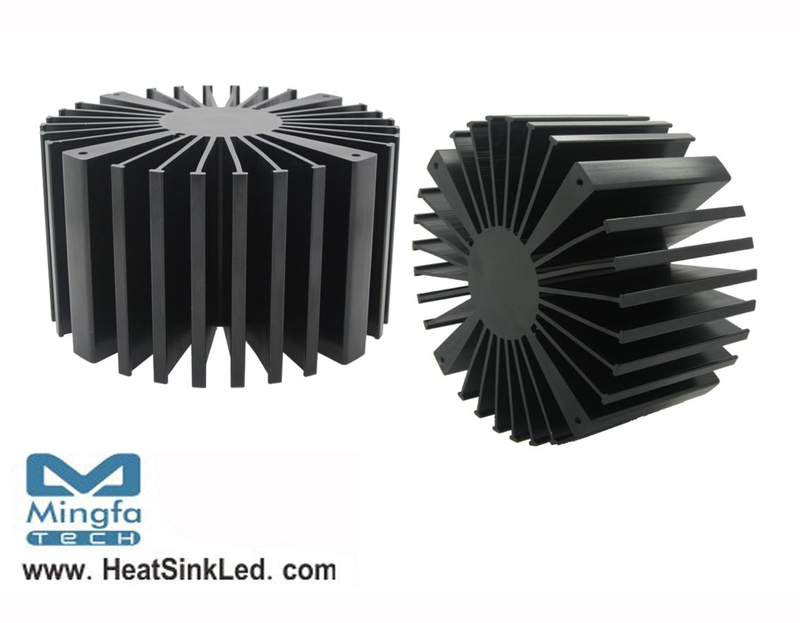

SimpoLED-VOS-160100 for Vossloh-Schwabe Modular Passive LED Cooler Φ160mm

Availability:
Quantity:
SimpoLED-VOS-160100 for Vossloh-Schwabe Modular Passive LED Cooler Φ160mm

* The SimpoLED-VOS-160100 Vossloh-Schwabe Modular Passive LED Coolers are specifically designed for luminaires using the Vossloh-Schwabe LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2500 to 1,2000 lumen.
* Thermal resistance range Rth  0.48°C/W.
* Modular design with mounting holes foreseen for direct mounting of Vossloh-Schwabe LUGA Shop LED engines.
* Diameter 160mm - standard height 100mm Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-VOS-160100 for Vossloh-Schwabe Modular Passive LED Cooler Φ160mm.pdf
