SimpoLED-TRI-5870 for Tridonic Modular Passive LED Cooler Φ58mm

Quantity:

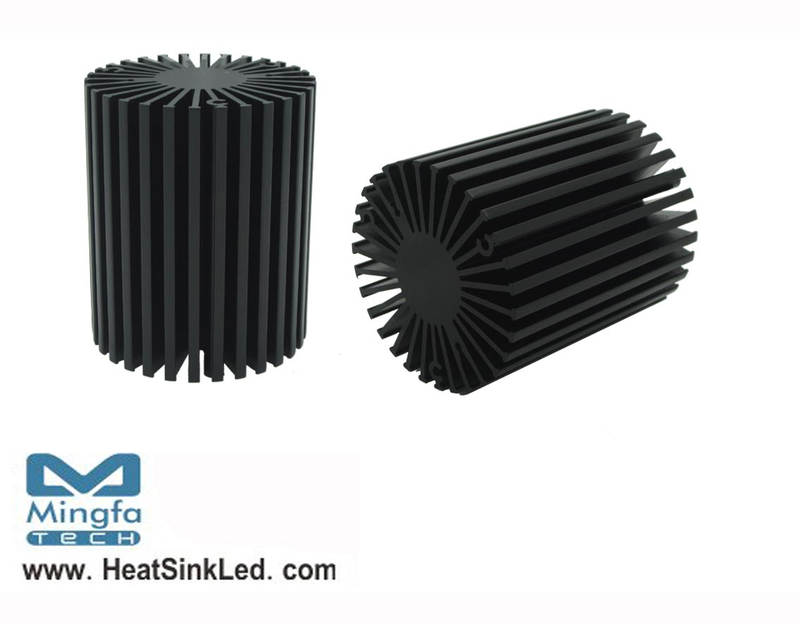

SimpoLED-TRI-5870 for Tridonic Modular Passive LED Cooler Φ58mm

* The  SimpoLED-TRI-5870 Tridonic Modular Passive LED Coolers are specifically designed for luminaires using the Tridonic LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to 1800 lumen.
* Thermal resistance range Rth 2.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of Tridonic TALEXXmodule SLE Modules engines.
* Diameter 58mm - standard height 70mm  Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-TRI-5870 for Tridonic Modular Passive LED Cooler Φ58mm.pdf
