SimpoLED-TRI-140 for Tridonic Modular Passive LED Cooler Φ140.5mm

Quantity:

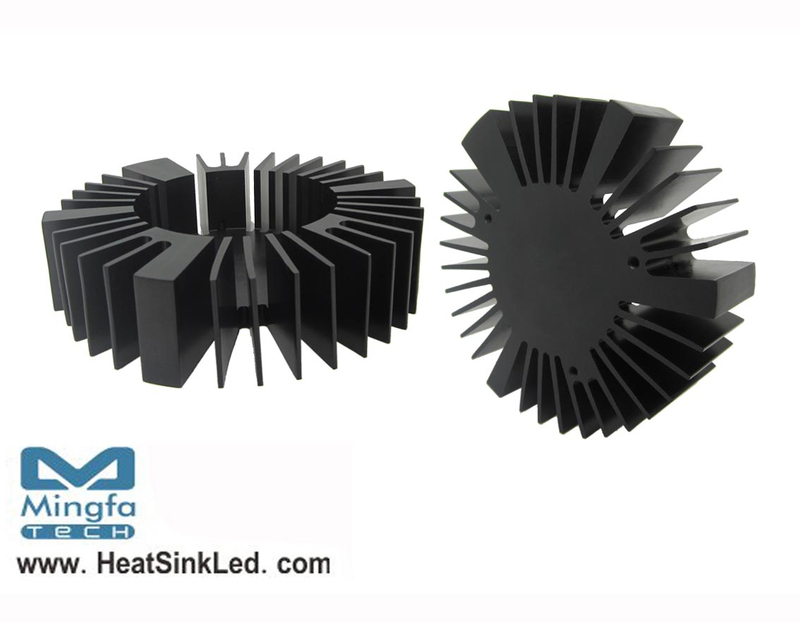

SimpoLED-TRI-140 for Tridonic Modular Passive LED Cooler Φ140.5mm


* The Cool-LED Simlpo for Tridonic Stark DLE LED Modular Passive LED Coolers are specifically designed for luminaires using the Stark DLED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages."

* For spotlight and downlight designs from 1100 to 3000 lumen.

* Thermal resistance range Rth 1.1°C/W.

* Modular design with mounting holes foreseen for direct mounting of Tridonic Stark DLE LED Modular.

* Diameter 140.5mm - standard height 35mm Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-TRI-140 for Tridonic Modular Passive LED Cooler Φ140.5mm.pdf
