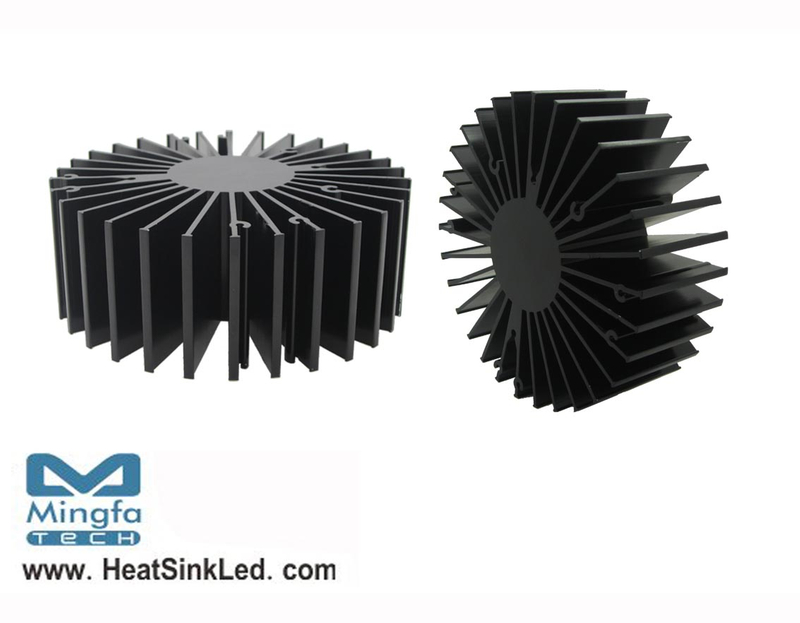

SimpoLED-TRI-13550 for Tridonic Modular Passive LED Cooler Φ135mm

Quantity:
SimpoLED-TRI-13550 for Tridonic Modular Passive LED Cooler Φ135mm

* The SimpoLED-TRI-13550 Tridonic Modular Passive LED Coolers are specifically designed for luminaires using the Tridonic LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 5500 to 7000 lumen.
* Thermal resistance range Rth 0.65°C/W.
* Modular design with mounting holes foreseen for direct mounting of Tridonic TALEXXmodule SLE modules engines.
* Diameter 135mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.
