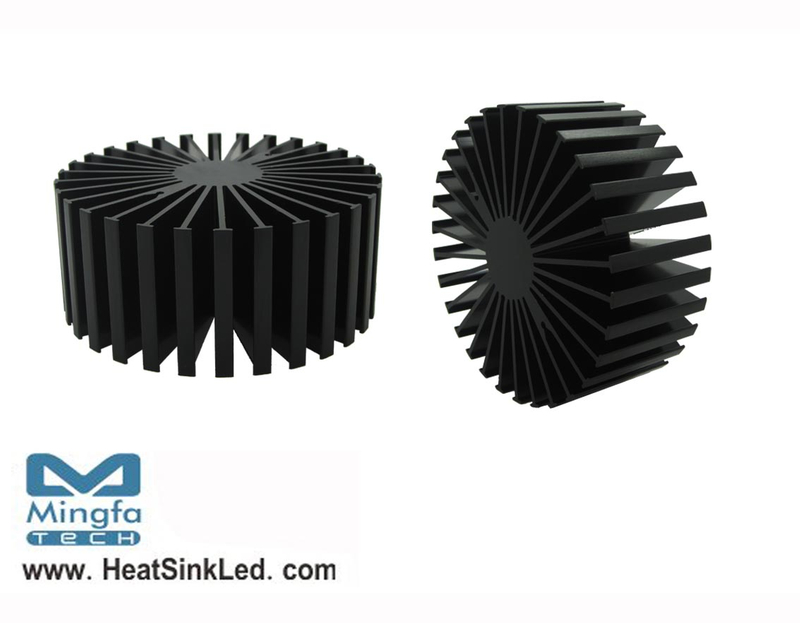

SimpoLED-SHA-11750 for Sharp Modular Passive LED Cooler Φ117mm

Availability:
Quantity:
SimpoLED-SHA-11750 for Sharp Modular Passive LED Cooler Φ117mm


* The SimpoLED-SHA-11750 SHARP Modular Passive LED Coolers are specifically designed for
   luminaires using the SHARP LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1700 to 6000 lumen.
* Thermal resistance range Rth 0.92°C/W.
* Modular design with mounting holes foreseen for direct mounting of SHARP Tiger Zenigataand and Mega Zenigata LED engines.
* Diameter 117mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.
