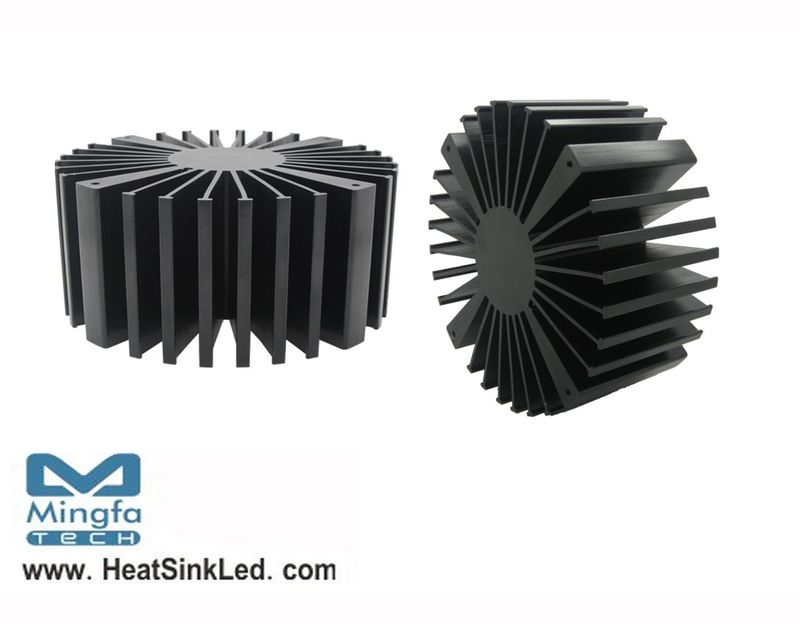

SimpoLED-SEO-16050 for Seoul Modular Passive LED Cooler Φ160mm

Quantity:

SimpoLED-SEO-16050 for Seoul Modular Passive LED Cooler Φ160mm

* The SimpoLED-SEO-16050 Seoul Modular Passive LED Coolers are specifically designed for luminaires using the Seoul LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2700 to 9000 lumen.
* Thermal resistance range Rth 0.68°C/W.
* Modular design with mounting holes foreseen for direct mounting of Seoul ZC12 Series,ZC18 Series, ZC25 Series, ZC40 Series,ZC60 Series and ZC100 Series COB engines.
* Diameter 160mm - standard height 50mm Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-SEO-16050 for Seoul Modular Passive LED Cooler Φ160mm.pdf
