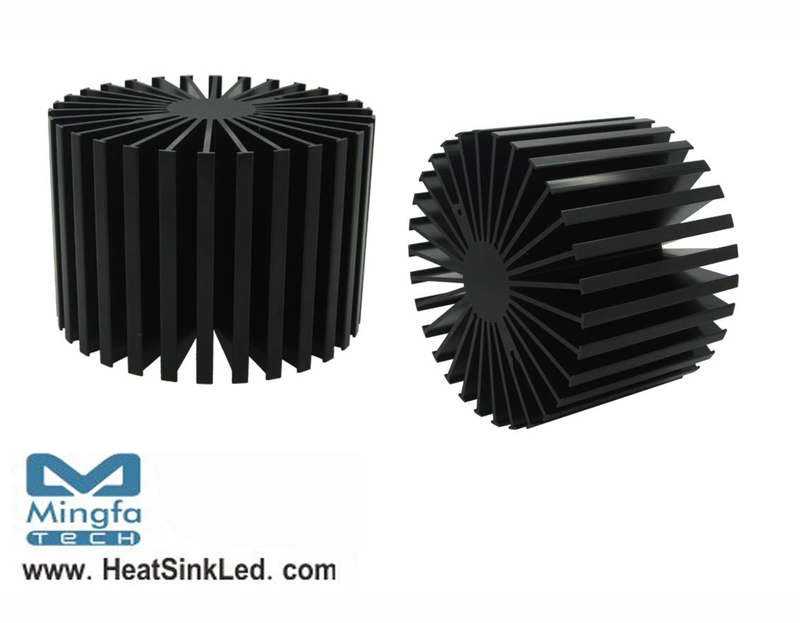

SimpoLED-SEO-11780 for Seoul Modular Passive LED Cooler Φ117mm

Quantity:

SimpoLED-SEO-11780 for Seoul Modular Passive LED Cooler Φ117mm


*The SimpoLED-SEO-11780 Seoul Modular Passive LED Coolers are specifically designed for

   luminaires using the Seoul LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and

   thermal performance matching the lumen packages.

* For spotlight and downlight designs from 2400 to 7800 lumen.

* Thermal resistance range Rth 0.8°C/W.

* Modular design with mounting holes foreseen for direct mounting of Seoul ZC4 Series,ZC6

  Series,ZC12 Series,ZC18 Series,ZC25 Series, ZC40 Series and ZC60 Series COB engines.

* Diameter 117mm - standard height 80mm Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-SEO-11780 for Seoul Modular Passive LED Cooler Φ117mm.pdf
