SimpoLED-SAM-11750 for Samsung Modular Passive LED Cooler Φ117mm

Quantity:

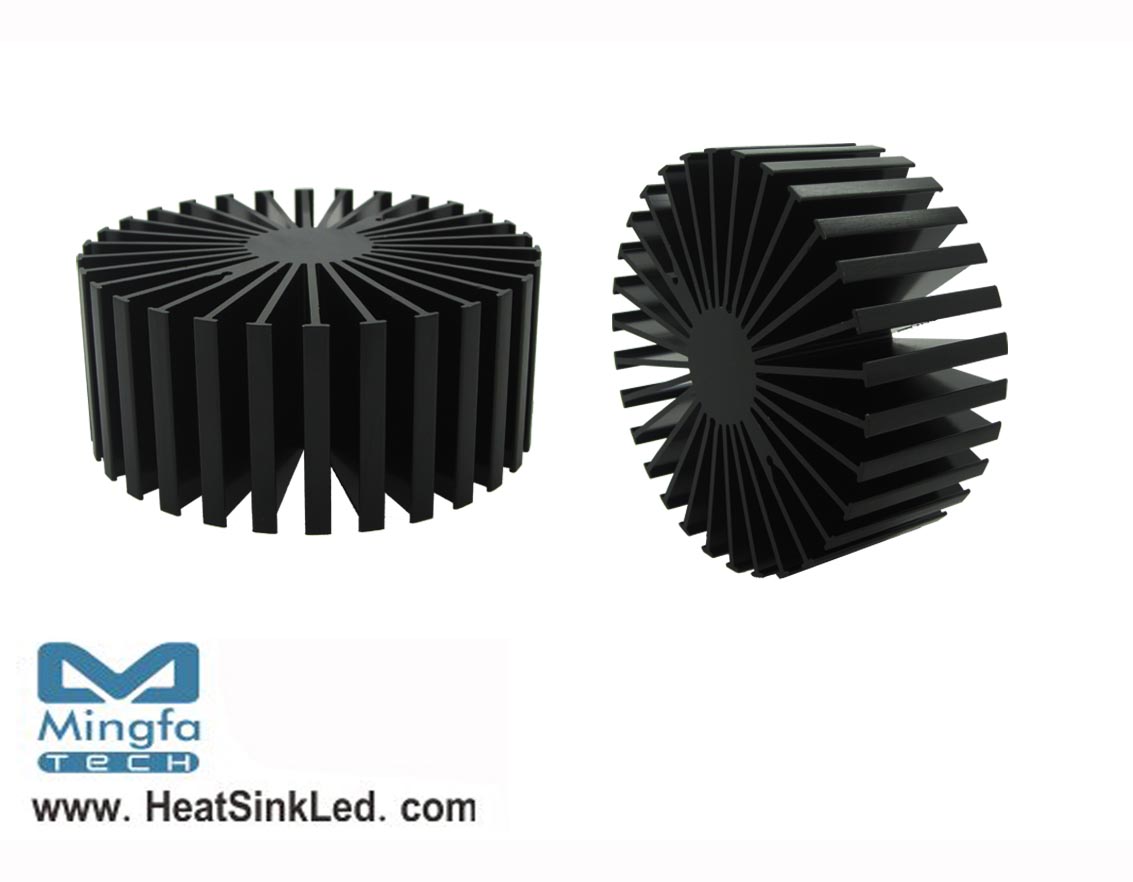

SimpoLED-SAM-11750 for Samsung Modular Passive LED Cooler Φ117mm

* The SimpoLED-SAM-11750 Samsung Modular Passive LED Coolers are specifically designed for luminaires using the Samsung LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2000 to 6200 lumen.
* Thermal resistance range Rth 0.97°C/W.
* Modular design with mounting holes foreseen for direct mounting of Samsung COB LED engines.
* Diameter 117mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.



Download PDF

SimpoLED-SAM-11750 for Samsung Modular Passive LED Cooler Φ117mm.pdf
