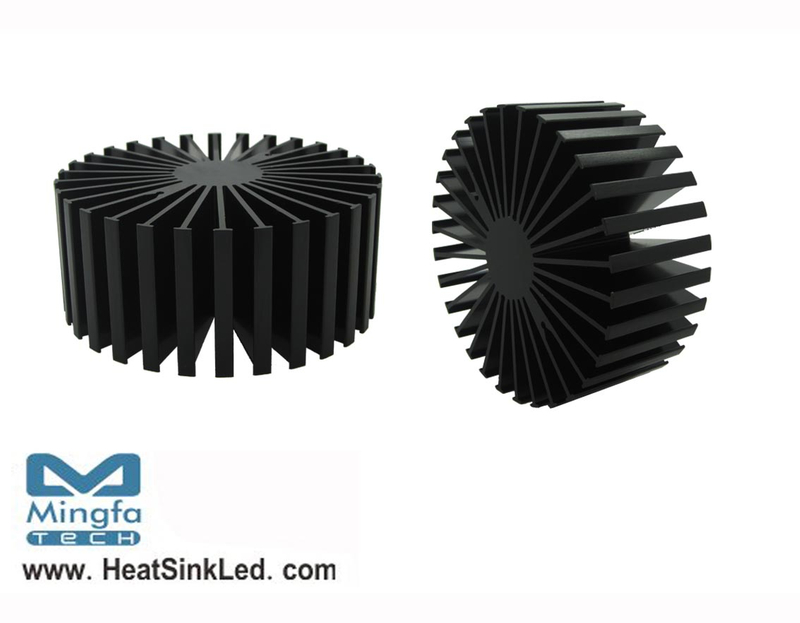

* The SimpoLED-PHI-11750 Philips Modular Passive LED Coolers are specifically designed for luminaires using the Philips LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1700 to 5700 lumen.
* Thermal resistance range Rth 0.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM engines.
* Diameter 117mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
