SimpoLED-OSR-5850 for OSRAM Modular Passive LED Cooler Φ58mm

Availability:
Quantity:

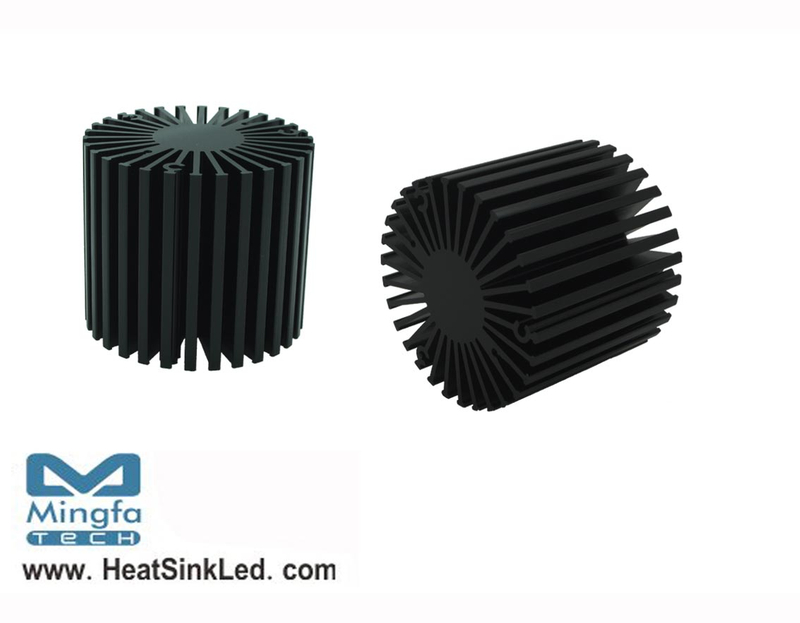

SimpoLED-OSR-5850 for OSRAM Modular Passive LED Cooler Φ58mm

* The SimpoLED-OSR-5850 OSRAM Modular Passive LED Coolers are specifically designed for
   luminaires using the OSRAM LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 400 to 1300 lumen.
* Thermal resistance range Rth  3.7°C/W.
* Modular design with mounting holes foreseen for direct mounting of OSRAM PrevaLED Core AC ,
  SOLERIQ P6 and SOLERIQ S13 LED engines.
* Diameter 58mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-OSR-5850 for OSRAM Modular Passive LED Cooler Φ58mm.pdf
