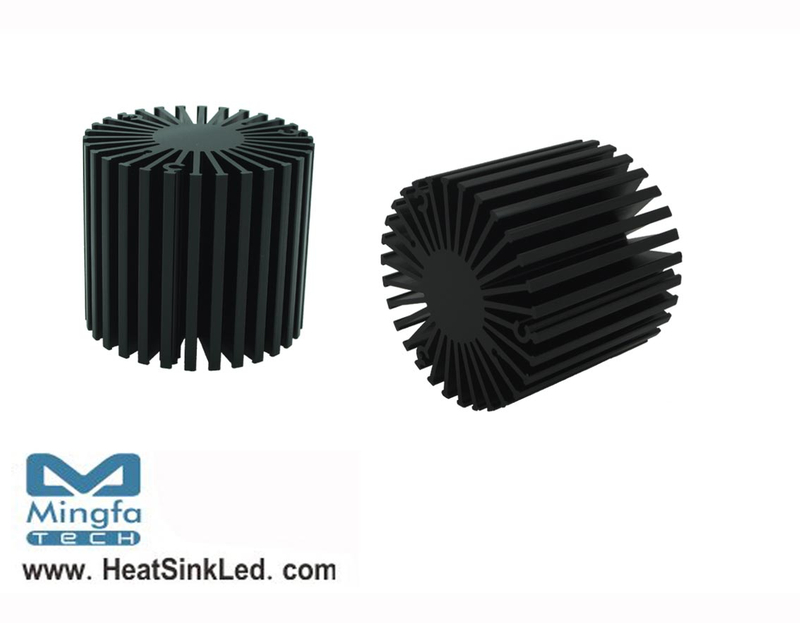

* The SimpoLED-LUN-5850 Luminus Modular Passive LED Coolers are specifically designed for luminaires using the Luminus LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 400 to 1600 lumen.
* Thermal resistance range Rth 3.7°C/W.
* Modular design with mounting holes foreseen for direct mounting of Luminus COB LED engines.
* Diameter 58mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
