SimpoLED-LUN-11780 for Luminus Xnova Modular Passive LED Cooler Φ117mm

Availability:
Quantity:

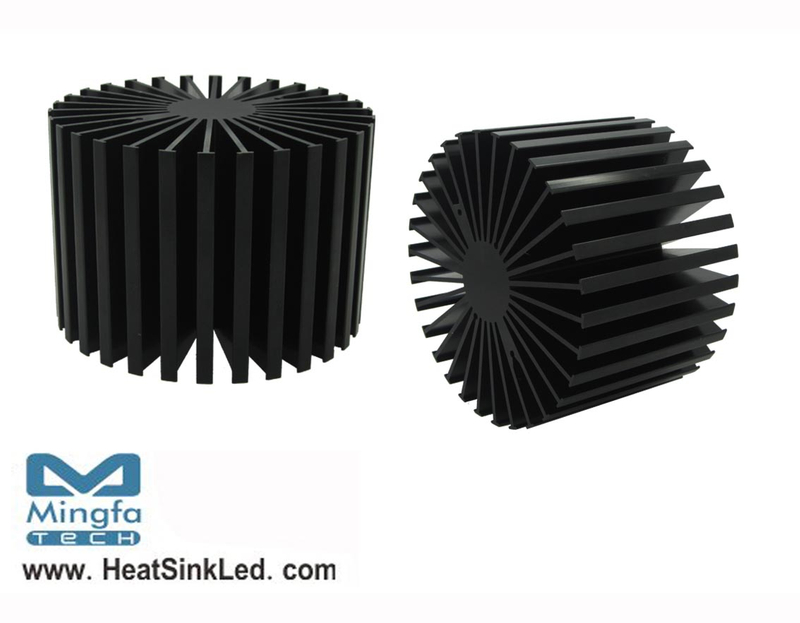

SimpoLED-LUN-11780 for Luminus Xnova Modular Passive LED Cooler Φ117mm

* The SimpoLED-LUN-11780 Luminus  Modular Passive LED Coolers are specifically designed for luminaires using the Luminus  LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1700 to 7000 lumen.
* Thermal resistance range Rth 0.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Luminus COB LED engines.
* Diameter 117mm - standard height 80mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-LUN-11780 for Luminus  Modular Passive LED Cooler Φ117mm.pdf
