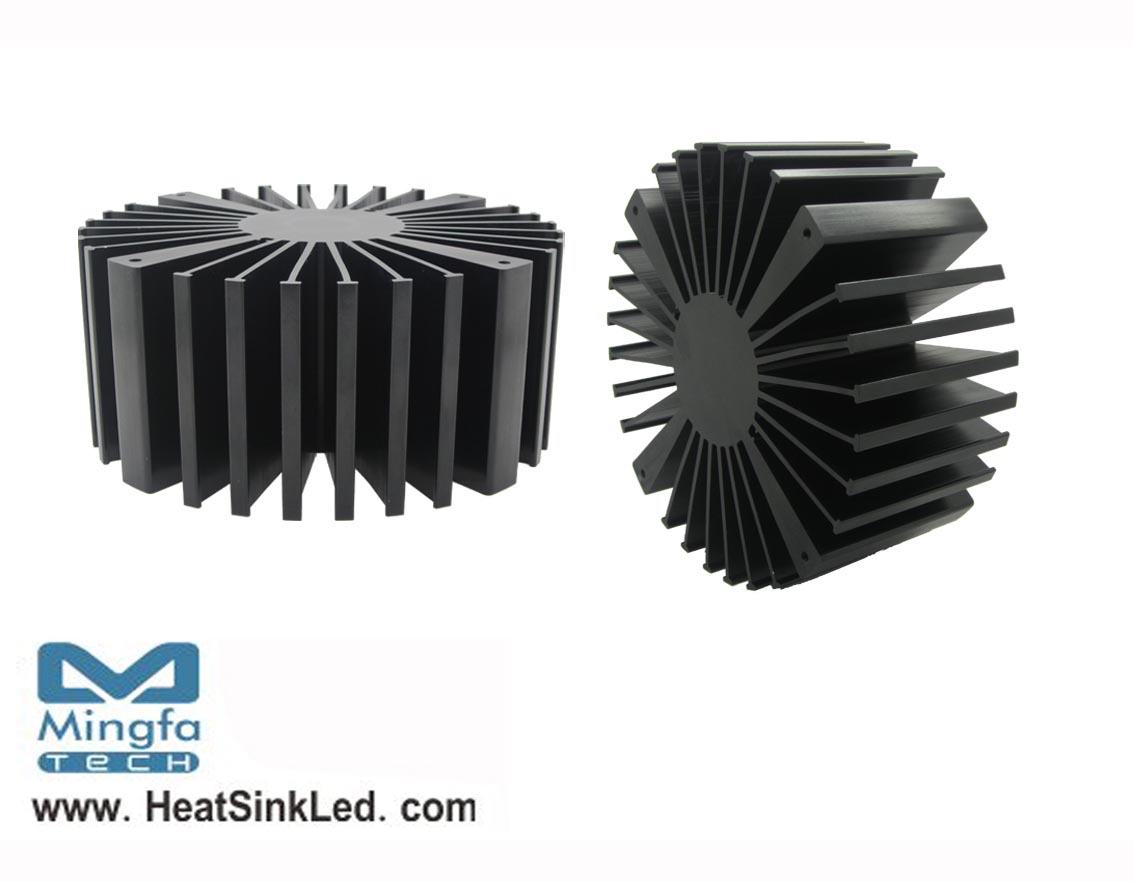

SimpoLED-LUME-16050 Lumens Modular Passive Star LED Heat Sink Φ160mm


SimpoLED-LUME-16050 Lumens Modular Passive Star LED Heat Sink Φ160mm

* The SimpoLED-LUME-16050 Lumens Modular Passive LED Coolers are specifically designed for luminaires using the Lumens LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2500 to 8500 lumen.
* Thermal resistance range Rth 0.68°C/W.
* Modular design with mounting holes foreseen for direct mounting of Lumens ERC2530,ERC2540,ERC3050 and ERC3070 LED engines.
* Diameter 160mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.

Download PDF

SimpoLED-LUME-16050 for Lumens Modular Passive LED Cooler Φ160mm.pdf
