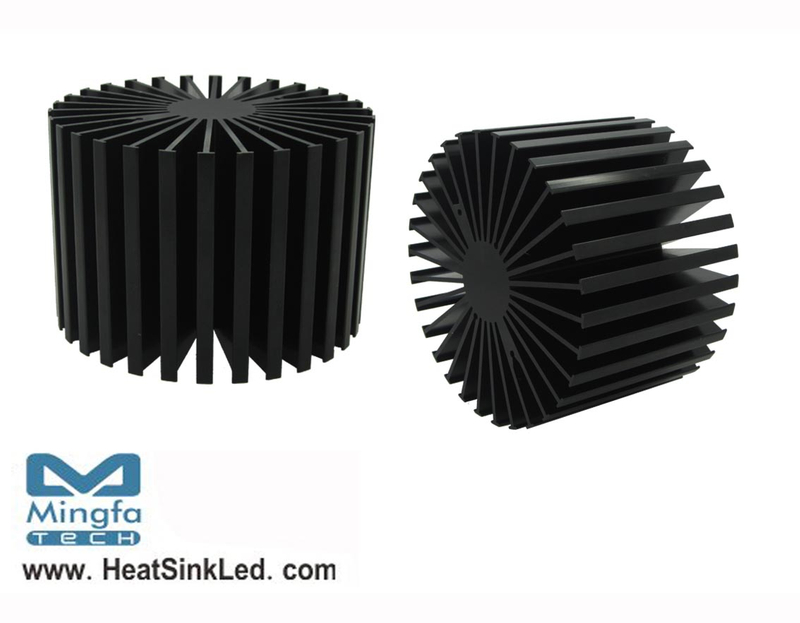

SimpoLED-LUME-11780 Lumens Modular Passive Star LED Heat Sink Φ117mm


SimpoLED-LUME-11780 Lumens Modular Passive Star LED Heat Sink Φ117mm

* The SimpoLED-LUME-11780 Lumens Modular Passive LED Coolers are specifically designed for luminaires using the Lumens LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1700 to 7000 lumen.
* Thermal resistance range Rth 0.8 °C/W.
* Modular design with mounting holes foreseen for direct mounting of Lumens ERC1820,ERC2530,ERC2540 and ERC3050 LED engines.
* Diameter 117mm - standard height 80mm  Other heights on request.
* Extruded from highly conductive aluminum.

Download PDF

SimpoLED-LUME-11780 for Lumens Modular Passive LED Cooler Φ117mm.pdf
