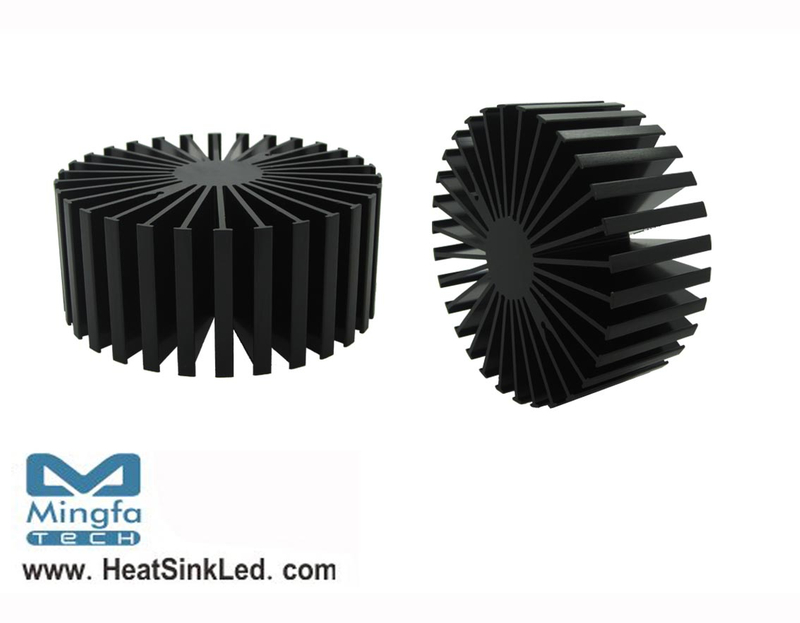

SimpoLED-LUME-11750 Lumens Modular Passive Star LED Heat Sink Φ117mm


SimpoLED-LUME-11750 Lumens Modular Passive Star LED Heat Sink Φ117mm

* The SimpoLED-LUME-11750 Lumens Modular Passive LED Coolers are specifically designed for luminaires using the Lumens LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1500 to 5600 lumen.
* Thermal resistance range Rth 0.92°C/W.
* Modular design with mounting holes foreseen for direct mounting of Lumens ERC1820,ERC2530,ERC2540 and ERC3050 LED engines.
* Diameter 117mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.

Download PDF

SimpoLED-LUME-11750 for Lumens Modular Passive LED Cooler Φ117mm.pdf
