SimpoLED-LUM-160150 for LumiLEDs Modular Passive LED Cooler Φ160mm

Availability:
Quantity:

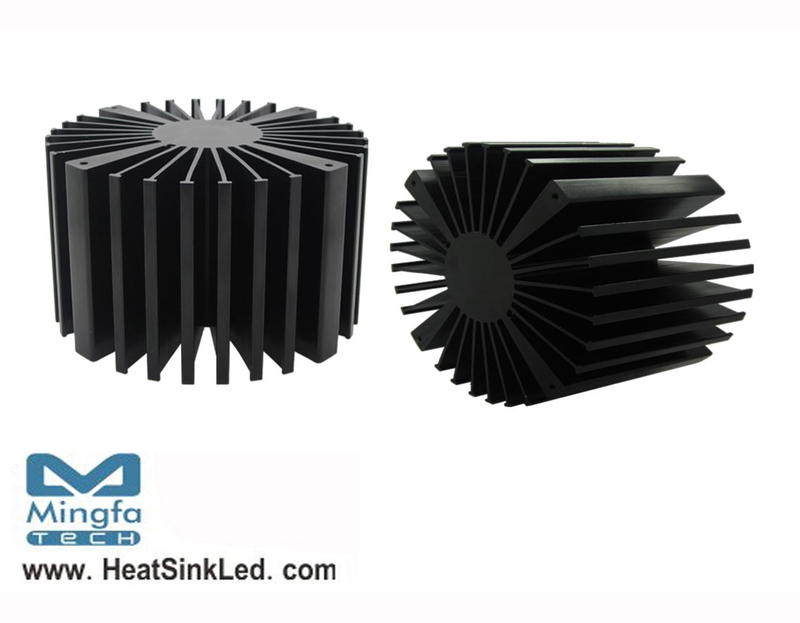

SimpoLED-LUM-160150 for LumiLEDs Modular Passive LED Cooler Φ160mm


* The SimpoLED-LUM-160150 LumiLEDs Modular Passive LED Coolers are specifically designed for luminaires using the LumiLEDs LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 7000 to 1,3000 lumen.
* Thermal resistance range Rth 0.42°C/W.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K and LueonCOB engines.
* Diameter 160mm - standard height 50mm,100mm and 150mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-LUM-160150 for LumiLEDs Modular Passive LED Cooler Φ160mm.pdf
