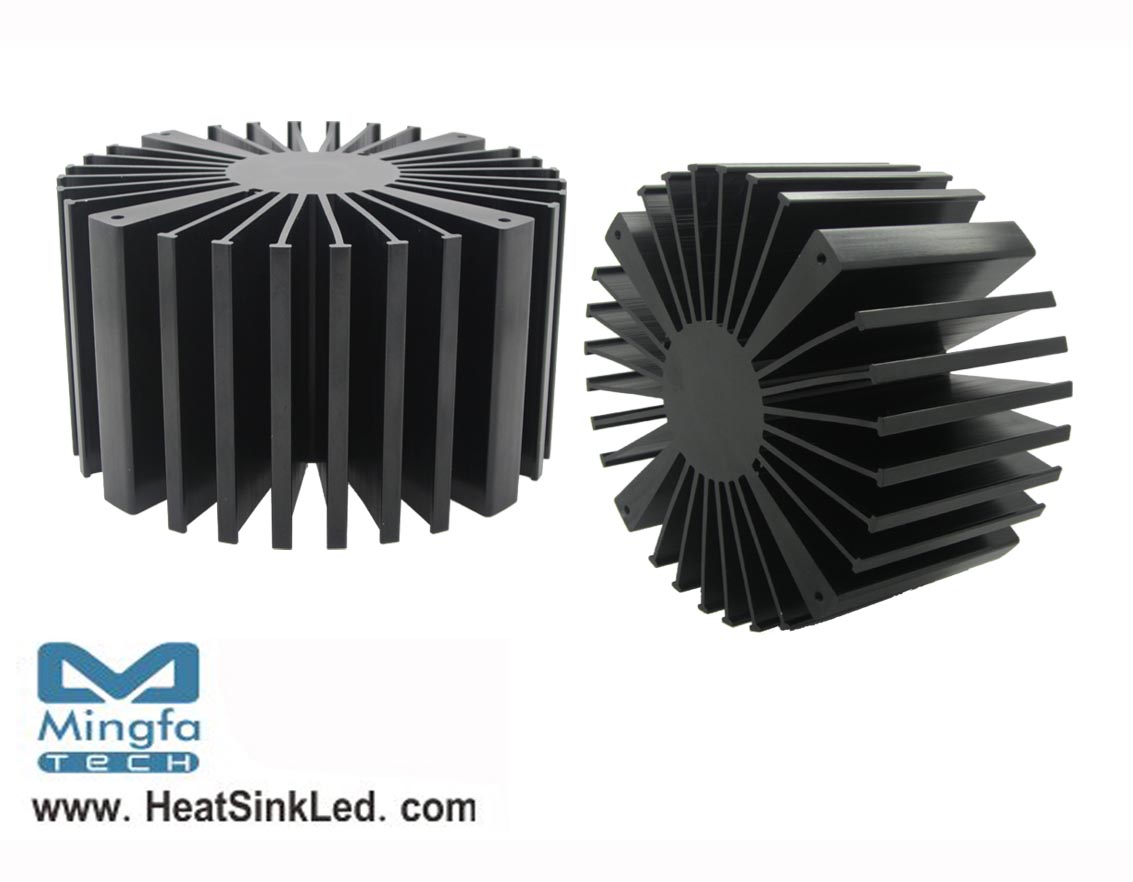

SimpoLED-LUM-160100 for LumiLEDs Modular Passive LED Cooler Φ160mm

Quantity:

SimpoLED-LUM-160100 for LumiLEDs Modular Passive LED Cooler Φ160mm


* The SimpoLED-LUM-160100 LumiLEDs Modular Passive LED Coolers are specifically designed for luminaires using the LumiLEDs LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 5500 to 11000 lumen.
* Thermal resistance range Rth 0.48°C/W.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K and LueonCOB engines.
* Diameter 160mm - standard height 100mm and 150mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-LUM-160100 for LumiLEDs Modular Passive LED Cooler Φ160mm.pdf
