SimpoLED-LG-5870 Modular Passive LED Cooler Φ58mm for LG Innotek

Availability:
Quantity:

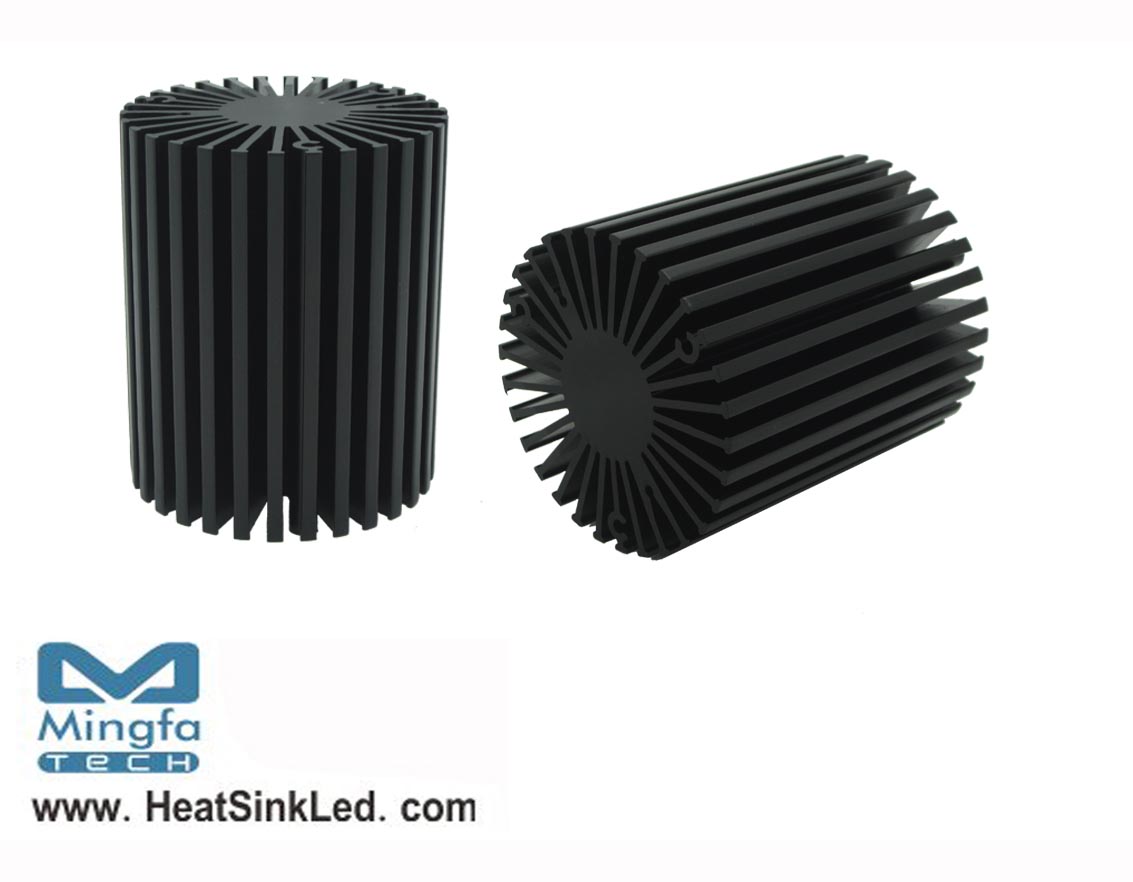

SimpoLED-LG-5870 Modular Passive LED Cooler Φ58mm for LG Innotek

* The SimpoLED-LG-5870 LG Innotek Modular Passive LED Coolers are specifically designed for luminaires using the LG Innotek LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 600 to 2000 lumen.
* Thermal resistance range Rth 2.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek LEMWM COB 10W/13W LED engines.
* Diameter 58mm - standard height 70mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-LG-5870 for LG Modular Passive LED Cooler Φ58mm.pdf
