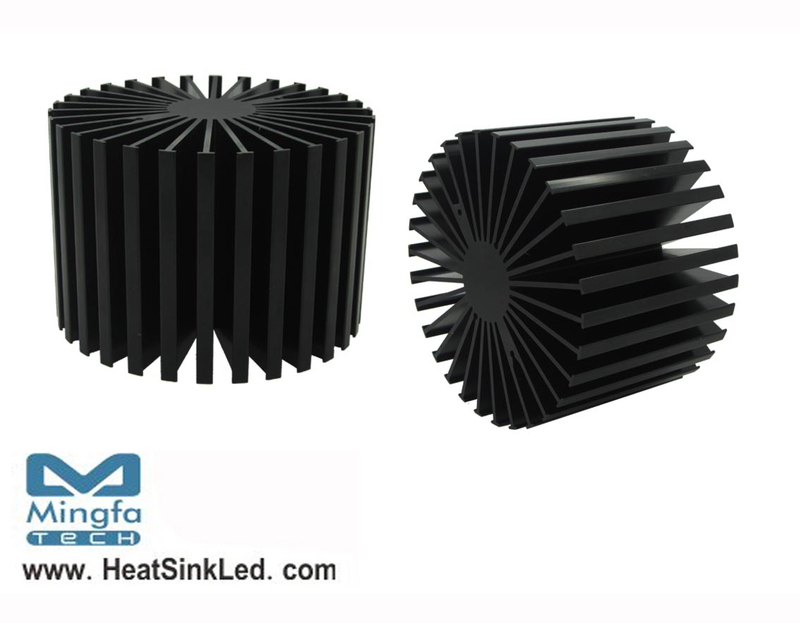

* The SimpoLED-LG-11780 LG Innotek Modular Passive LED Coolers are specifically designed for luminaires using the LG Innotek LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2200 to 7500 lumen.
* Thermal resistance range Rth 0.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek COB 17W/24W/40W/60W LED engines.
* Diameter 117mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
SimpoLED-LG-11780 for LG Modular Passive LED Cooler Φ117mm.pdf
