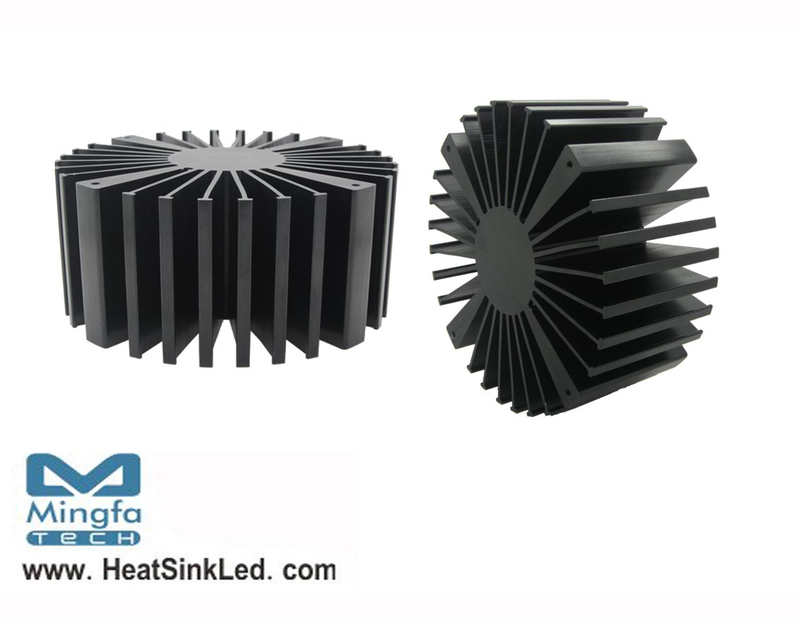

* The SimpoLED-EDI-16050 Edison Modular Passive LED Coolers are specifically designed for luminaires using the Edison LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2500 to 7200 lumen.
* Thermal resistance range Rth 0.68°C/W.
* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex II COB LED engines.
* Diameter 160mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
