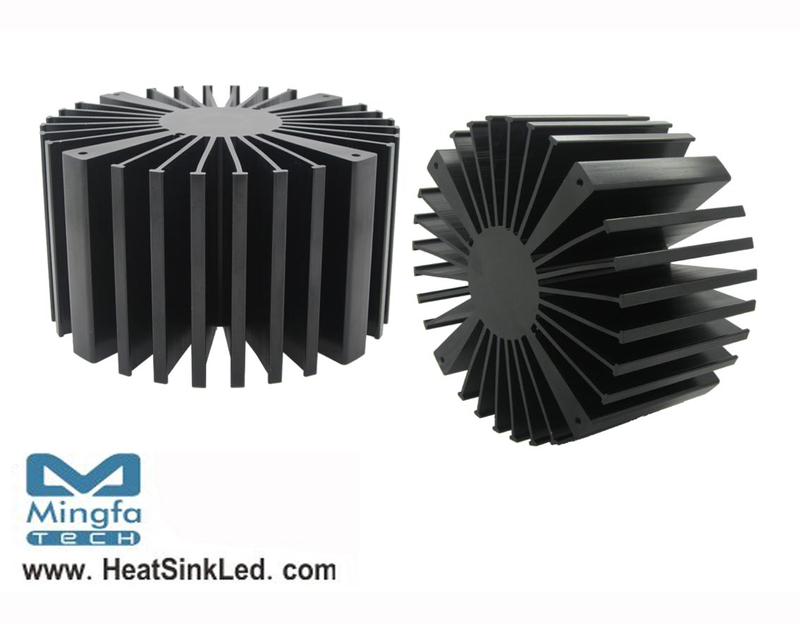

SimpoLED-EDI-160100 for Edison Modular Passive LED Cooler Φ160mm

Quantity:
SimpoLED-EDI-160100 for Edison Modular Passive LED Cooler Φ160mm

* The SimpoLED-EDI-160100 Edison Modular Passive LED Coolers are specifically designed for luminaires using the Edison LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2500 to 11000 lumen.
* Thermal resistance range Rth  0.48°C/W.
* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex II COB LED engines.
* Diameter 160mm - standard height 100mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-EDI-160100 for Edison Modular Passive LED Cooler Φ160mm.pdf
