SimpoLED-CRE-160100 for Cree Modular Passive LED Cooler Φ160mm

Availability:
Quantity:

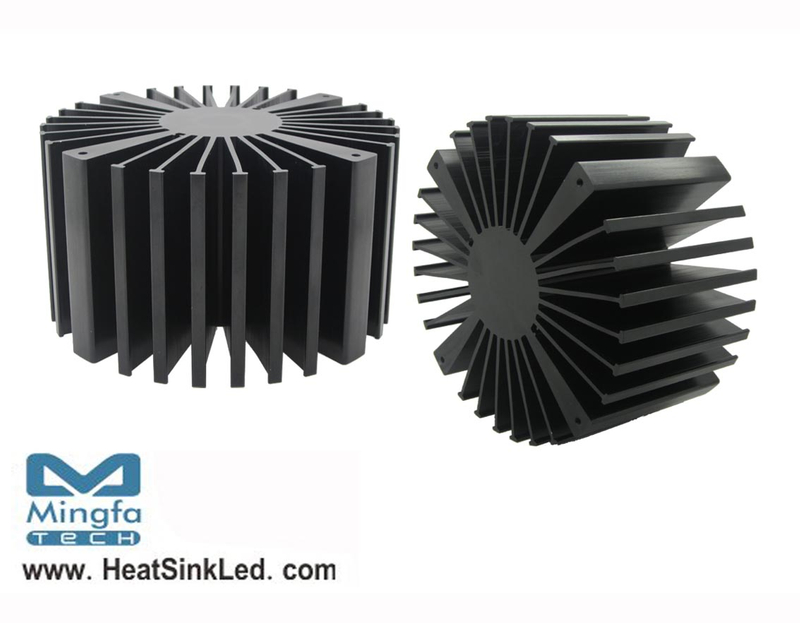

SimpoLED-CRE-160100 for Cree Modular Passive LED Cooler Φ160mm

* The SimpoLED-CRE-160100 Cree Modular Passive LED Coolers are specifically designed for luminaires using the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 3600 to 11600 lumen.
* Thermal resistance range Rth  0.48°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree Lxamp, 1512,1520, CXA1816,1820 ,1830,1850, CXA2520,CXA1850,CXA25xx,CXA30xx and CXA3590 COB engines.
* Diameter 160mm - standard height 100mm Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-CRE-160100 for Cree Modular Passive LED Cooler Φ160mm.pdf
